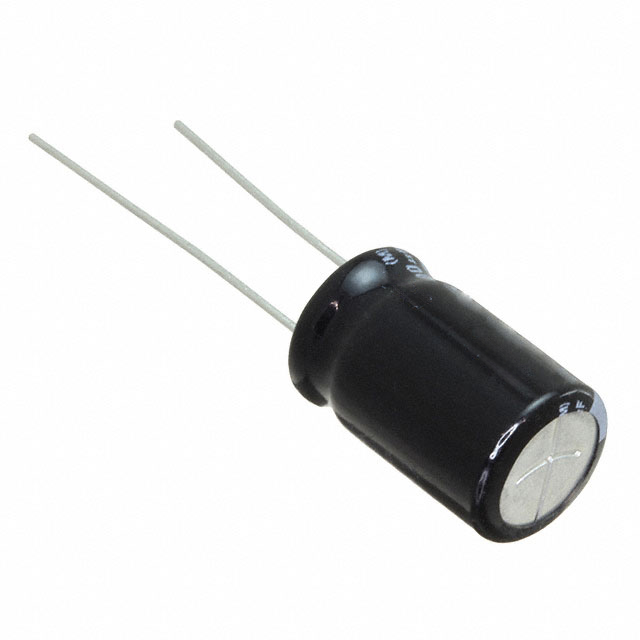

RSRJ3101M4EF12300T is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Elna America. Its product description is ALUM ELECT CAP. Review the specifications below when checking this part for your BOM.
Aluminum Electrolytic Capacitors specifications for RSRJ3101M4EF12300T
- Description：ALUM ELECT CAP
- Series：RJ3
- Mfr：Elna America
- Package：Bulk
- Capacitance：100 µF
- Tolerance：±20%
- Voltage - Rated：63 V
- ESR (Equivalent Series Resistance)：1.49Ohm @ 120Hz
- Lifetime @ Temp.：2000 Hrs @ 105°C
- Operating Temperature：-55°C ~ 105°C
- Polarization：Polar
- Ratings：-
- Applications：General Purpose
- Ripple Current @ Low Frequency：276.5 mA @ 120 Hz
- Ripple Current @ High Frequency：395 mA @ 100 kHz
- Lead Spacing：0.197" (5.00mm)
- Size / Dimension：0.394" Dia (10.00mm)
- Height - Seated (Max)：0.492" (12.50mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：Radial, Can
- Impedance：650 mOhms
Aluminum Electrolytic Capacitors datasheet and documents for RSRJ3101M4EF12300T
