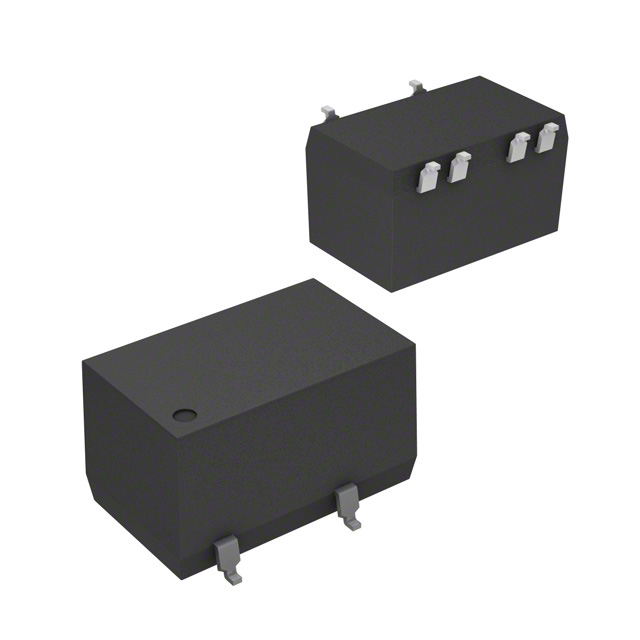

RSZ-3.33.3/P

RSZ-3.33.3/P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 3.3V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RSZ-3.33.3/P

• Description：DC DC CONVERTER 3.3V 1W
• Series：ECONOLINE RSZ (1W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：3.6V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 70°C
• Efficiency：60%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 6 Leads
• Size / Dimension：0.60" L x 0.37" W x 0.35" H (15.2mm x 9.3mm x 9.0mm)

DC DC Converters datasheet and documents for RSZ-3.33.3/P
