RT4527AGQW

Overview

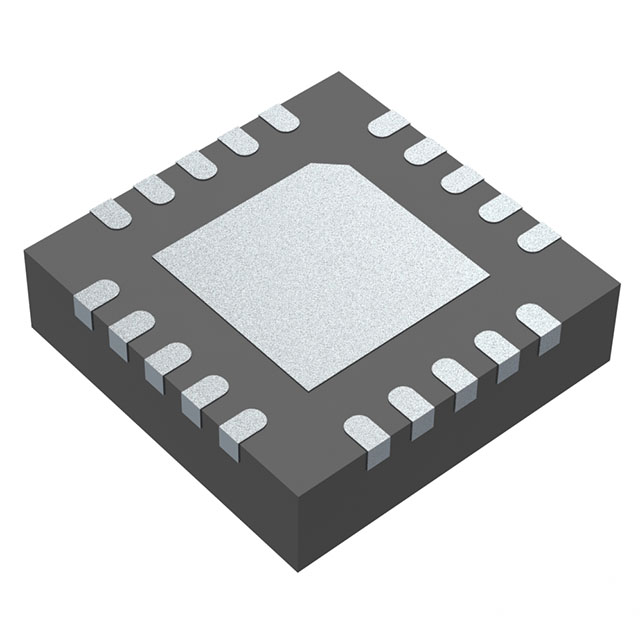

The RT4527AGQW is a high-efficiency, I²C-controlled boost converter designed for LED lighting applications. It features six independent current channels capable of driving white LEDs with precise regulation. The device supports adjustable switching frequencies and includes comprehensive protection mechanisms such as over-voltage, over-current, and over-temperature protection. Packaged in a WQFN-20 format, it operates within specified voltage ranges suitable for automotive and industrial backlighting systems.

Feature Summary

• I²C programmable control interface for dynamic adjustment
• Six-channel constant current output for multi-string LED arrays
• Integrated boost topology with high conversion efficiency
• Comprehensive thermal and electrical fault protection

Applications

• Automotive interior and exterior LED backlighting
• Industrial LCD panel illumination
• High-brightness LED display modules
• General solid-state lighting fixtures

Procurement Notes

Verify the specific suffix and tape/reel configuration against the official Richtek datasheet to ensure compatibility with automated assembly processes. Confirm that the ordering part number matches the exact package variant and temperature grade required for the target application environment. Cross-reference the manufacturer's latest revision history to account for any minor parameter updates or packaging changes.

Selection Notes

Select this component when designing circuits requiring multiple independently controlled LED strings from a single boost stage. Ensure the input voltage range aligns with the system power supply and that the total forward voltage of the LED strings remains within the converter's output limits. Evaluate the thermal performance requirements based on the expected load current and ambient operating conditions.

Part Context

This part belongs to Richtek's family of intelligent LED drivers tailored for complex lighting architectures. It integrates power switches and control logic into a compact surface-mount package. The design emphasizes ease of integration via digital interfaces while maintaining robust analog current regulation for consistent luminance across all connected channels.

Replacement Considerations

Consult the official Richtek replacement guide for direct pin-compatible alternatives. Verify functional equivalence regarding channel count, current accuracy, and communication protocol before substitution.
