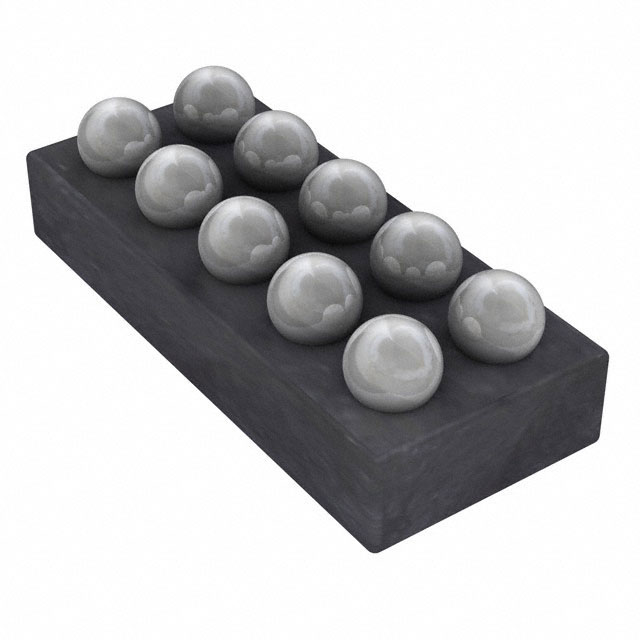

RT4532WSC

Overview

The RT4532WSC is a high-efficiency dual-output LED driver IC designed for backlight applications. It functions as a DC-DC step-up regulator with integrated I²C and PWM dimming capabilities. The device operates within an input voltage range of 2.5V to 5.5V and supports switching frequencies up to 1.1MHz. Packaged in a compact 10-WLCSP format, it provides regulated current control for white LEDs.

Feature Summary

• Dual output configuration for independent LED channel control
• Integrated I²C interface for digital programming and monitoring
• Supports PWM dimming for precise brightness adjustment
• High-efficiency boost topology optimized for battery-powered devices

Applications

• Smartphone display backlight systems
• Tablet computer LED illumination
• Portable electronic device lighting
• Mobile camera flash drivers

Procurement Notes

Verify the specific suffix and package variant against the manufacturer's latest datasheet before ordering. Confirm RoHS compliance status and lead-free requirements with the supplier. Ensure ESD handling procedures are followed during storage and assembly due to the WLCSP package sensitivity.

Selection Notes

Select this component when dual-channel LED regulation with digital control is required. The I²C interface allows for system-level integration without additional GPIO usage. Consider the 10-WLCSP footprint for space-constrained PCB layouts. Verify thermal performance requirements for the target application environment.

Part Context

This part belongs to Richtek's family of PMIC LED drivers. It complements other models like the RT4723 by offering similar functionality in a different package size. The series targets mobile consumer electronics requiring efficient power management and compact form factors.

Replacement Considerations

Check for direct pin-compatible substitutes such as the RT4532P-A if available. Verify electrical parameters match exactly before substitution. Consult the manufacturer's cross-reference guide for approved alternatives.
