Product Detailed Parameters
- Description：HORIZONTAL 25 A PCB THREE LINE C
- Series：RT
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Power Line
- Number of Lines：3
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：3.5mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.441" Dia (62.00mm)
- Height (Max)：1.496" (38.00mm)
- Package / Case：Horizontal, 12 PC Pin
- Inductance @ Frequency：1.5 mH @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

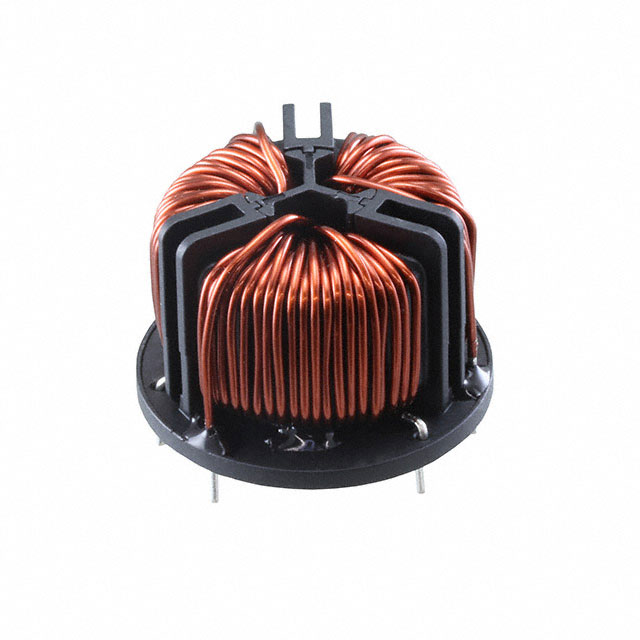

The RT8132-25-1M5 is a three-line common mode choke manufactured by TE Connectivity / Schaffner. It features an inductance of 1.5 mH with a 1% tolerance and supports a maximum DC current of 25 A. The component has a maximum DC resistance of 3.5 mohms and operates within a temperature range of -40°C to +125°C. Designed for PCB mounting via through-hole termination, it measures 38 mm in height.
Feature Summary
- Horizontal three-line configuration for balanced filtering
- High current handling capability up to 25 A
- Low DC resistance for efficient power transmission
- Robust thermal performance across wide operating temperatures
Applications
- EV Charging Stations
- Fast Chargers
- Switch Mode Power Supplies
- UPS Systems
Procurement Notes
Verify the specific part number RT8132-25-1M5 against official TE Connectivity / Schaffner documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with PCB layout requirements for through-hole mounting. Cross-reference datasheets for thermal derating curves and insulation ratings relevant to your specific application environment.
Selection Notes
Select this component when high-current three-phase or single-phase with neutral filtering is required. The 1.5 mH inductance suits applications needing significant common mode noise attenuation at 100 kHz. Consider the 25 A rating and low DCR for efficiency-critical designs. Verify that the horizontal form factor fits the available board space and clearance constraints.
Part Context
This component belongs to the RT-Series of common mode chokes from Schaffner. These devices are engineered for electromagnetic interference suppression in power electronics. The series offers various inductance and current ratings to accommodate diverse industrial and commercial power supply architectures.
Replacement Considerations
Check for direct substitutes within the RT8132 series with different inductance values if electrical characteristics need adjustment. Verify mechanical footprint compatibility before considering alternatives from other manufacturers.
