Product Detailed Parameters
- Description：CMC 8MH 8A 2LN TH
- Series：RT
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：8A
- DC Resistance (DCR) (Max)：21mOhm (Typ)
- Voltage Rating - DC：425V
- Voltage Rating - AC：300V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.693" L x 1.260" W (43.00mm x 32.00mm)
- Height (Max)：1.732" (44.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：8 mH @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

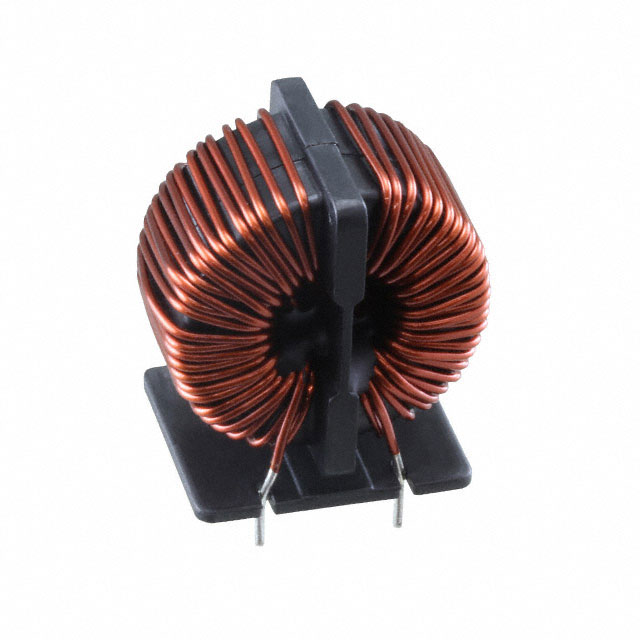

The RT8522-8-8M0 is a current compensated common mode choke from the TE Connectivity / Schaffner RT-Series. It features an 8 mH inductance with a tolerance of -30% to +50%, tested at 100 kHz. The component supports a maximum DC current of 8 A and has a maximum DC resistance of 21 mOhms. Designed for vertical PCB through-hole mounting, it utilizes a ferrite core and operates within a temperature range of -40°C to +100°C. The physical dimensions are 32 mm x 43 mm x 44 mm.
Feature Summary
- Current compensated design for effective common mode noise suppression
- Vertical two-wire PCB mounting configuration
- Ferrite core construction for high performance
Applications
- Power line EMI filtering
- Electromagnetic compatibility (EMC) applications
- Industrial equipment power supplies
Procurement Notes
Verify the manufacturer part number RT8522-8-8M0 against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the specific order suffix matches the required electrical parameters, as variations may exist within the product family. Cross-reference the datasheet for precise mechanical tolerances and compliance certifications before finalizing procurement specifications.
Selection Notes
Select this component when a vertical mounting solution is required for high-current common mode filtering. The 8 A rating and 8 mH inductance make it suitable for applications needing robust noise attenuation on power lines. Ensure the PCB layout accommodates the specified 32 mm x 43 mm footprint and through-hole pin spacing.
Part Context
This component belongs to the RT-Series of common mode chokes manufactured by TE Connectivity / Schaffner. The series offers various inductance and current ratings tailored for different EMC requirements. The RT8522 variant specifically denotes a current compensated choke designed for vertical board integration.
Replacement Considerations
Check for direct substitutes within the RT8522 series with matching inductance and current ratings. Verify mechanical compatibility if replacing vertically mounted components.
