RT9261-27GX

Description：IC REG BOOST 2.7V 60MA SOT89-3
Series：-
Mfr：Richtek USA Inc.
Package：Tape & Reel (TR)

SKU:9a286aa62af0 Category: Voltage Regulators - DC DC Switching Regulators Brand: Richtek USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RT9261-27GX is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Richtek USA Inc.. Its product description is IC REG BOOST 2.7V 60MA SOT89-3. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for RT9261-27GX

Description：IC REG BOOST 2.7V 60MA SOT89-3
Series：-
Mfr：Richtek USA Inc.
Package：Tape & Reel (TR)
Function：Step-Up
Output Configuration：Positive
Topology：Boost
Output Type：Fixed
Number of Outputs：1
Voltage - Input (Min)：1V
Voltage - Input (Max)：7V
Voltage - Output (Min/Fixed)：2.7V
Voltage - Output (Max)：-
Current - Output：60mA (Switch)
Frequency - Switching：120kHz
Synchronous Rectifier：No
Operating Temperature：-20°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：TO-243AA

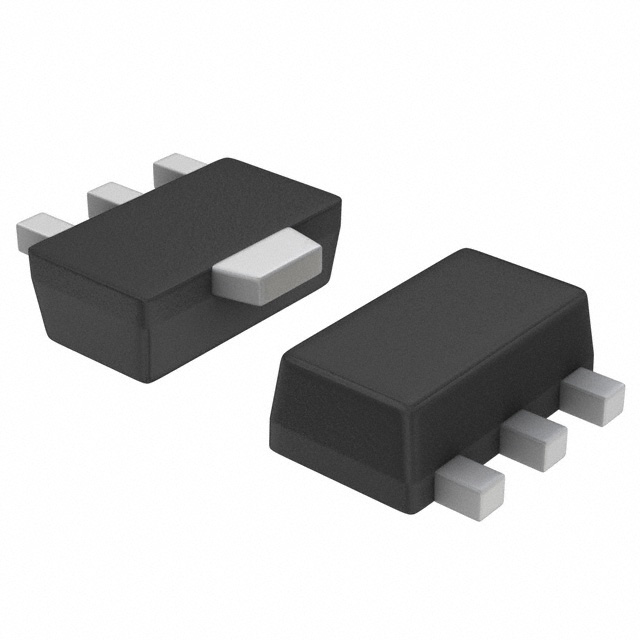

Supplier Device Package：SOT-89-3
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for RT9261-27GX

RT9261-27GX

Voltage Regulators - DC DC Switching Regulators Overview

The RT9261-27GX is a VFM Step-up DC/DC converter IC manufactured by Richtek USA Inc. It utilizes a CMOS process to achieve ultra-low supply current, making it suitable for battery-powered instruments. The device integrates an oscillator, VFM control circuit, driver transistor (LX switch), reference voltage unit, error amplifier, detection resistors, and LX switch protection. It constructs a low ripple and high efficiency step-up converter using only three external components: an inductor, a diode, and a capacitor.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Ultra-low input current consumption of 5µA at switch off
High output voltage accuracy with ±2% tolerance
Low start-up voltage capability of 0.85V at 1mA
Low temperature drift of +50 ppm/°C

Voltage Regulators - DC DC Switching Regulators Applications

Power source for battery-powered equipment
Power source for cameras, camcorders, VCRs, PDAs, pagers, electronic data banks, and hand-held communication equipment
Power source for applications requiring higher voltage than the batteries used in the appliances

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify component authenticity through authorized distributors or the manufacturer directly. Confirm RoHS compliance and lead-free status as specified in official documentation. Check for moisture sensitivity level (MSL) handling requirements during storage and assembly. Ensure the specific suffix matches the required package type and output voltage configuration before procurement.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for designs prioritizing minimal external component count and low quiescent current. It is appropriate for portable devices where battery life is critical. Ensure the application requires a fixed output voltage compatible with the -27 suffix. Verify that the load current does not exceed the internal switch capabilities without external assistance.

Voltage Regulators - DC DC Switching Regulators Part Context

The RT9261 series comprises VFM Step-up DC/DC converters designed for battery-powered instruments. The RT9261-27GX specifically denotes a variant within this family, characterized by its fixed output voltage configuration and SOT-89 package option indicated by the 'X' suffix. It belongs to the broader category of power management integrated circuits focused on efficient voltage boosting from single-cell sources.
