RT9724GB

$0.73

Description：IC PWR SWITCH N-CHAN 1:1 SOT23-5
Series：-
Mfr：Richtek USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9c82748d35dc Category: Power Distribution Switches, Load Drivers Brand: Richtek USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH N-CHAN 1:1 SOT23-5
Series：-
Mfr：Richtek USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：On/Off
Voltage - Load：2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)：Not Required
Current - Output (Max)：1.5A
Rds On (Typ)：100mOhm
Input Type：Non-Inverting
Features：Load Discharge, Slew Rate Controlled
Fault Protection：Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature：-40°C ~ 100°C (TJ)
Mounting Type：Surface Mount

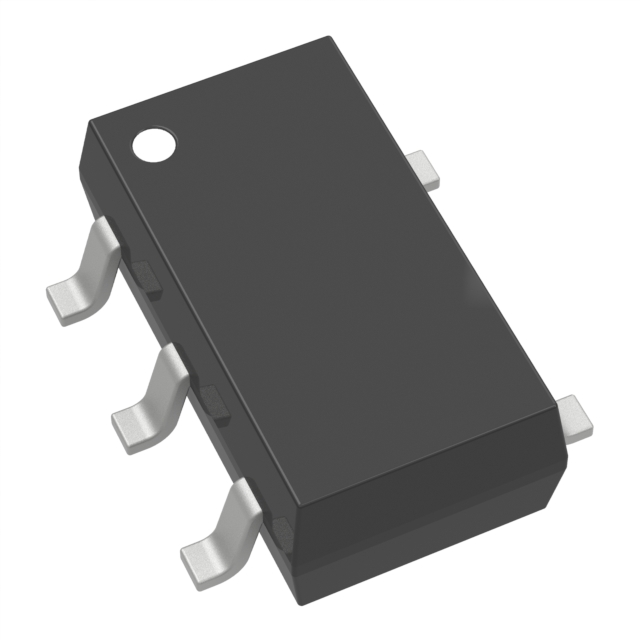

Supplier Device Package：SOT-23-5
Package / Case：SC-74A, SOT-753
Grade：-
Qualification：-

Download product information

RT9724GB

Overview

The RT9724GB is a cost-effective, low-voltage, single N-MOSFET high-side power switch IC manufactured by Richtek USA Inc. It operates within an input voltage range of 2.7 V to 5.5 V and supports a continuous current limit of 2 A. The device features a typical on-resistance of 100 mΩ and a maximum on-resistance of 120 mΩ. Supply current is typically 50 µA. Switching characteristics include a maximum on-time of 3 ms and a maximum off-time of 4 µs. It is housed in an SOT-23-5 package (SC-74A/SOT-753).

Feature Summary

Single N-channel MOSFET high-side power distribution switch design.
Integrated slew rate control for load switching applications.
Low supply current consumption for energy-efficient operation.

Applications

Power distribution switches in portable devices.
Load drivers for low-voltage digital systems.
Battery-powered equipment requiring efficient power management.

Procurement Notes

Verify component authenticity through authorized distributors or the manufacturer directly. Confirm the specific suffix 'GB' matches your board requirements. Note that this part may be obsolete; check for active status before finalizing procurement plans. Ensure all handling and storage conditions comply with industry standards for surface-mount devices.

Selection Notes

Select this component when a single high-side switch with controlled slew rate is required. Verify that the 2 A current limit and 5.5 V maximum input voltage align with system specifications. Consider the SOT-23-5 package size for PCB layout constraints. Evaluate thermal performance based on the expected load current and ambient temperature conditions.

Part Context

The RT9724 series belongs to Richtek's portfolio of power management solutions designed for portable electronics. These components focus on providing efficient power distribution with minimal footprint. The RT9724GB specifically targets applications needing reliable high-side switching with built-in protection features inherent to modern power switch ICs.

Replacement Considerations

RT9742ANGJ5F is listed as a similar available substitute. Verify pin compatibility and electrical parameters before substitution. Check if the alternative meets the same voltage and current requirements.
