RT9740AGQW

Overview

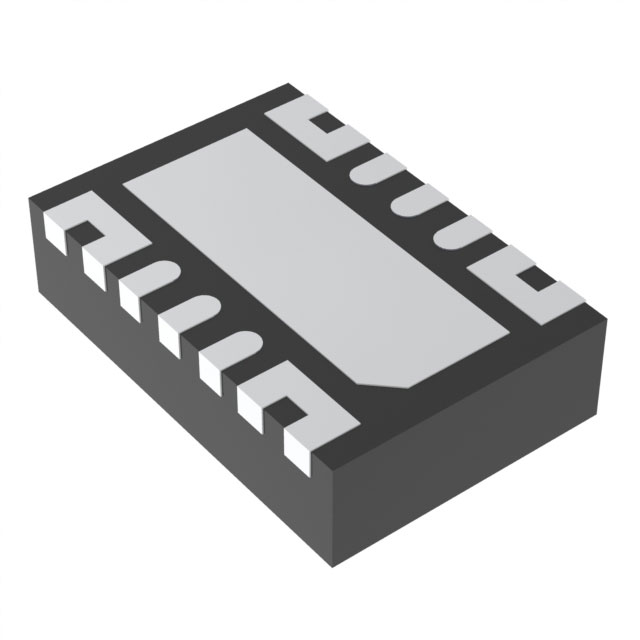

The RT9740AGQW is a dual-channel, ultra-low resistance load switch manufactured by Richtek Technology Corporation. It operates within an input voltage range of 800 mV to 5.5 V and features a maximum on-resistance of 18 mΩ per channel. The device supports a maximum operating frequency of 1.22 MHz and includes a maximum off-time of 4 µs. It is housed in a WDFN-14 surface-mount package and functions reliably across a temperature range of -40°C to +85°C.

Feature Summary

• Dual-channel architecture for independent high-side power switching
• Ultra-low on-resistance minimizes conduction losses
• Integrated enable control for precise power sequencing

Applications

• Portable electronic devices requiring efficient power distribution
• Battery-powered systems with strict space constraints
• Peripheral power management in mobile platforms

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct packaging and tape-and-reel specifications. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Ensure the component meets all environmental and safety standards required for your specific application design before finalizing procurement orders.

Selection Notes

Select this component when dual-channel power switching is required with minimal voltage drop. The low on-resistance makes it suitable for high-current applications where efficiency is critical. Ensure the input voltage does not exceed 5.5 V and that the thermal requirements fit within the -40°C to +85°C operational range for reliable performance.

Part Context

This part belongs to Richtek's family of ultra-low resistance load switches designed for portable electronics. It provides a compact solution for managing multiple power rails in space-constrained environments. The dual-channel design allows for independent control of separate loads, enhancing system flexibility and power management capabilities.

Replacement Considerations

Consult the official datasheet for pin-compatible alternatives or functional equivalents from the same product family. Verify that any substitute matches the electrical characteristics, particularly the on-resistance and voltage ratings, to ensure seamless integration without redesigning the PCB layout.
