RTCN-5080

Power Line Filter Modules Overview

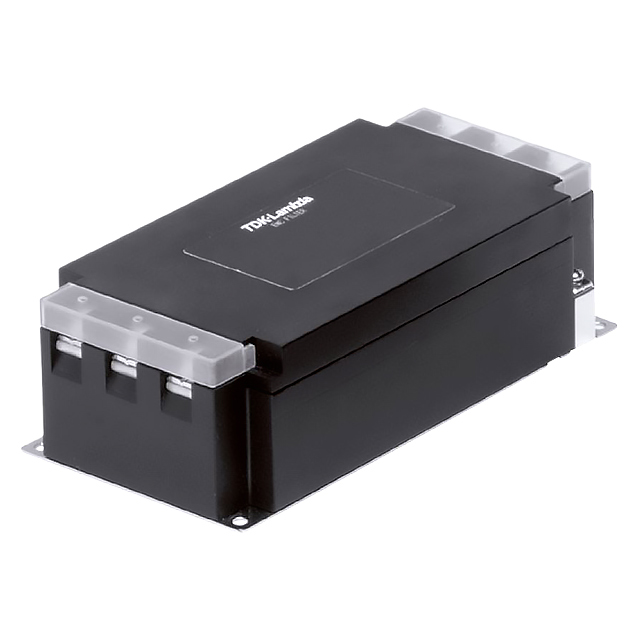

The RTCN-5080 is a three-phase EMI/EMC line filter manufactured by TDK-Lambda. It features a rated voltage of 500 VAC and 500 VDC, with an 80 A current rating. Designed for chassis mounting via screw terminals, this single-stage filter conforms to UL 1283 and ENEC 14 safety standards. The unit weighs 3.6 kg and measures approximately 161 mm in length and 267 mm in width.

Power Line Filter Modules Feature Summary

• Designed specifically for secondary side three-phase inverters
• Low profile construction for compact integration
• Conforms to UL and EN safety agency requirements

Power Line Filter Modules Applications

• Secondary side three-phase inverter systems
• Industrial power conditioning equipment
• High-current AC power distribution networks

Power Line Filter Modules Procurement Notes

Verify the specific part number against official TDK-Lambda documentation to ensure compatibility with your system's voltage and current requirements. Confirm that the chassis mount configuration and screw terminal type match your installation constraints. Check for updated safety certifications such as UL 1283 and ENEC 14 before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select the RTCN-5080 when a robust solution for three-phase noise suppression is required at high currents up to 80 A. Its low profile design facilitates installation in space-constrained environments. Ensure the application involves secondary side inverter circuits where compliance with major international safety standards is mandatory for operational approval.

Power Line Filter Modules Part Context

This component belongs to the RTCN series of power line filters from TDK-Lambda, which covers a wide range of current ratings from 6 A to 300 A. These filters are engineered for general-purpose use in industrial settings, providing reliable EMI/EMC attenuation for three-phase AC power lines while maintaining structural integrity under heavy load conditions.

Power Line Filter Modules Replacement Considerations

Consult official TDK-Lambda substitution guides for verified alternatives. Cross-reference specifications such as current rating, voltage class, and physical dimensions to ensure functional equivalence without compromising system safety or performance standards.

Power Line Filter Modules FAQ

What is the primary design purpose of the RTCN-5080?

It is designed specifically for secondary side three-phase inverters.

Does the RTCN-5080 meet international safety standards?

Yes, it conforms to UL 1283 and ENEC 14 safety agency requirements.
