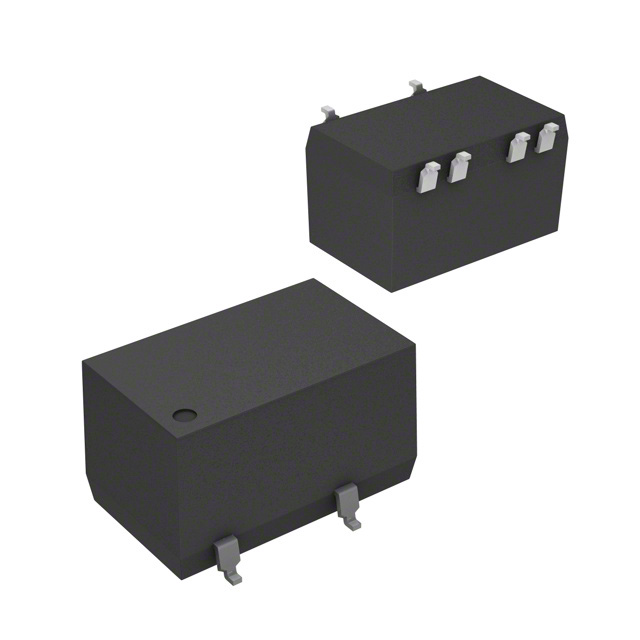

RTD-0505/H

RTD-0505/H is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-5V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RTD-0505/H

• Description：DC DC CONVERTER +/-5V 2W
• Series：ECONOLINE RTD (2W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA, 200mA
• Power (Watts)：2 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：75%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 6 Leads
• Size / Dimension：0.60" L x 0.37" W x 0.35" H (15.2mm x 9.3mm x 9.0mm)

DC DC Converters datasheet and documents for RTD-0505/H
