RTEN-2050

Power Line Filter Modules Overview

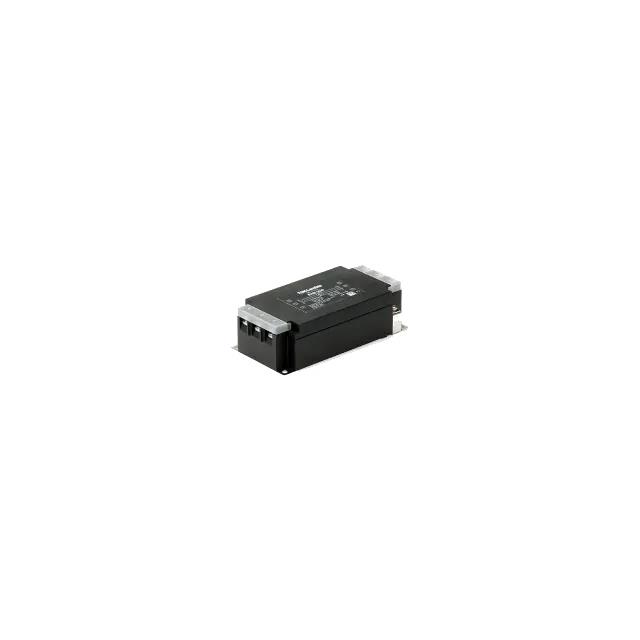

The RTEN-2050 is a single-phase EMI/EMC power line filter manufactured by TDK-Lambda. It features screw terminations and panel mount installation. The device supports an input voltage of 250 VAC and handles a rated current of 50 A at 60 Hz. Physical dimensions are 170 mm in length, 90 mm in width, and 54 mm in height. It operates within a temperature range of -25°C to 85°C. Key electrical specifications include a maximum leakage current of 1 mA and a minimum insulation resistance of 100 MΩ.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Designed for secure panel mounting applications
• Utilizes screw termination connections for reliable wiring

Power Line Filter Modules Applications

• Industrial machinery requiring EMC compliance
• Medical equipment power inputs
• Electronic test and measurement instruments

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm compatibility with your system's frequency requirements, as sources indicate support for both 60 Hz and specialized frequencies like 25 Hz or 85 Hz. Ensure the panel cutout dimensions match the physical size of 170 x 90 mm. Confirm that the 50 A current rating aligns with your load requirements and that the 1 mA leakage current meets safety standards for your application environment.

Power Line Filter Modules Selection Notes

Select this component when a single-phase solution is required for high-current applications up to 50 A. Consider the panel mount form factor if space constraints favor direct chassis integration over DIN rail or PCB mounting. Verify that the operating temperature range of -25°C to 85°C suits the environmental conditions of the installation site.

Power Line Filter Modules Part Context

The RTEN series belongs to TDK-Lambda's lineup of power line filters designed for noise reduction in electronic systems. This specific model targets single-phase AC applications, distinguishing it from three-phase variants within the same family. It serves as a critical component for achieving regulatory compliance in sensitive electronic environments.

Power Line Filter Modules Replacement Considerations

Consult official TDK-Lambda documentation for verified substitute part numbers. Cross-referencing with distributors may yield similar specifications, but only manufacturer-approved alternatives should be considered for functional equivalence.
