RTEN-5080

Power Line Filter Modules Overview

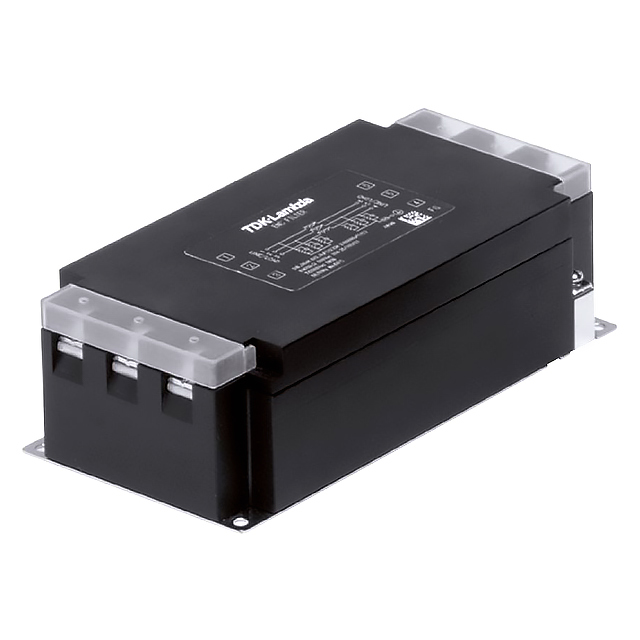

The TDK-Lambda RTEN-5080 is a three-phase EMI/EMC power line filter designed for industrial applications. It features an 80 A current rating and supports voltage ratings of 500 VAC and 500 VDC. The unit operates at a frequency of 60 Hz and includes a chassis mount style with screw termination. Key electrical specifications include a leakage current of 5 mA. The component complies with UL 1283 and ENEC 14 standards, ensuring safety and regulatory adherence for heavy-duty power filtering requirements.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression for three-phase systems
• Supports high current loads up to 80 amperes
• Features robust chassis mounting for secure installation
• Complies with international safety standards including UL and ENEC

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive input filtering
• Heavy-duty manufacturing equipment noise reduction
• Power distribution units requiring EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific order code against the manufacturer's latest datasheet to ensure compatibility with your system's voltage and current requirements. Confirm that the chassis mount dimensions align with your enclosure design. Check for any updated compliance certifications such as UL 1283 or ENEC 14 before finalizing procurement. Ensure proper torque specifications are followed during screw termination installation to maintain electrical integrity and safety ratings.

Power Line Filter Modules Selection Notes

Select this model when a three-phase filter with an 80 A capacity is required. Ensure the operating environment supports the specified 500 VAC rating. Consider the physical space needed for chassis mounting and screw connections. Verify that the 5 mA leakage current is acceptable for your sensitive load applications. Compare against other RTEN series variants if different current ratings are needed.

Power Line Filter Modules Part Context

The RTEN-5080 belongs to the TDK-Lambda RTEN series of power line filters. This series is engineered for demanding industrial environments where reliable EMI/EMC performance is critical. The RTEN series typically offers modular designs suitable for integration into larger power systems. TDK-Lambda specializes in power conversion components, leveraging internal material development for high reliability.

Power Line Filter Modules Replacement Considerations

Consult the official TDK-Lambda cross-reference guide for verified substitute part numbers. Ensure any replacement maintains the same 80 A rating and three-phase configuration. Verify that alternative models support identical voltage ratings and mounting styles. Do not assume interchangeability without checking specific datasheet parameters.
