RTHN-2006

Power Line Filter Modules Overview

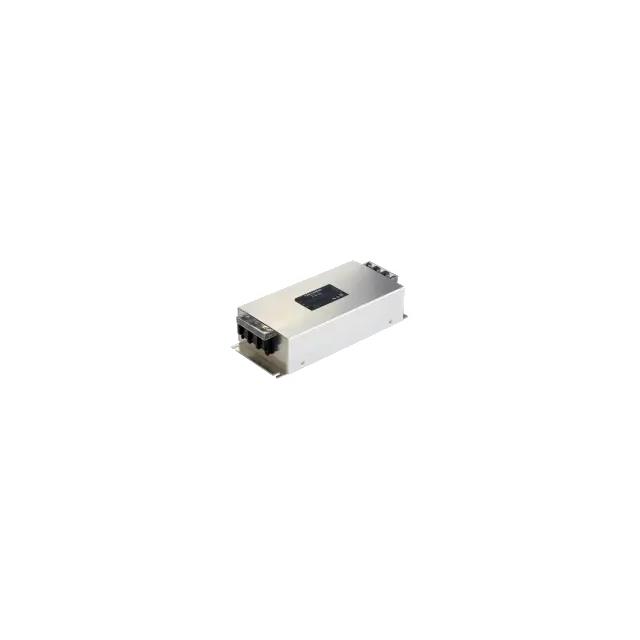

The TDK-Lambda RTHN-2006 is a three-phase (Delta) EMC/EMI power line filter designed for industrial applications. It features a two-stage filtering architecture to ensure effective noise suppression in demanding environments. The unit supports a rated voltage of 250VAC and a continuous current capacity of 6A. Termination is achieved via screw terminal blocks, facilitating secure connections. The device operates within a minimum temperature range of -25°C and is constructed for chassis mounting.

Power Line Filter Modules Feature Summary

• Two-stage filtering design for enhanced electromagnetic interference suppression
• Chassis mount construction for stable installation
• Screw terminal block termination style

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase Delta system noise reduction
• EMC compliance for sensitive electronic equipment

Power Line Filter Modules Procurement Notes

Verify the specific part number against official TDK-Lambda documentation to confirm compatibility with your three-phase Delta configuration. Ensure that the 6A current rating and 250VAC voltage specifications align with your system requirements before procurement. Cross-reference datasheets for precise mechanical dimensions and mounting hole patterns to guarantee physical fitment within your enclosure design.

Power Line Filter Modules Selection Notes

Select this component when a dedicated two-stage EMI filter is required for three-phase Delta circuits. Consider the 6A current limit and chassis mounting constraints during the design phase. Evaluate the need for screw terminations versus other connection methods based on vibration and maintenance requirements. Confirm that the operating temperature range meets the environmental conditions of the intended deployment site.

Power Line Filter Modules Part Context

This component belongs to the TDK-Lambda power line filter module series, which provides specialized solutions for managing electromagnetic interference in electrical systems. These filters are engineered to meet stringent regulatory standards for conducted emissions. The RTHN-2006 specifically addresses the needs of three-phase applications where high reliability and effective noise attenuation are critical for system performance and compliance.

Power Line Filter Modules Replacement Considerations

Consult official TDK-Lambda substitution guides or authorized distributors for verified equivalent models. Ensure any replacement maintains identical three-phase Delta compatibility, current ratings, and mounting specifications.
