RURG1520CC

Overview

The RURG1520CC is an ultrafast dual diode with a low forward voltage drop, designed for freewheeling and clamping applications in switching power supplies. It features a peak repetitive reverse voltage of 200 V and supports an average rectified forward current of 15 A per leg at a case temperature of 157°C. The device exhibits an ultrafast recovery time of 35 ns at 15 A and 30 ns at 1 A. It has a maximum forward voltage of 1.05 V at 25°C and is rated for a nonrepetitive peak surge current of 200 A. The component operates within a junction temperature range of -65 to 175°C and includes avalanche energy rating capabilities.

Feature Summary

• Ultrafast recovery characteristics minimize ringing and electrical noise in power switching circuits
• Avalanche energy rated for robust performance under transient conditions
• Low forward voltage drop reduces conduction losses
• Pb-free construction compliant with RoHS standards

Applications

• Switching Power Supplies
• Power Switching Circuits
• Freewheeling Diodes
• Clamping Diodes

Procurement Notes

Verify the specific ordering suffix against official documentation to confirm package type and shipping quantity. Confirm compliance requirements such as RoHS status directly from the manufacturer's datasheet before procurement. Ensure thermal management aligns with the specified junction-to-case thermal resistance values during integration.

Selection Notes

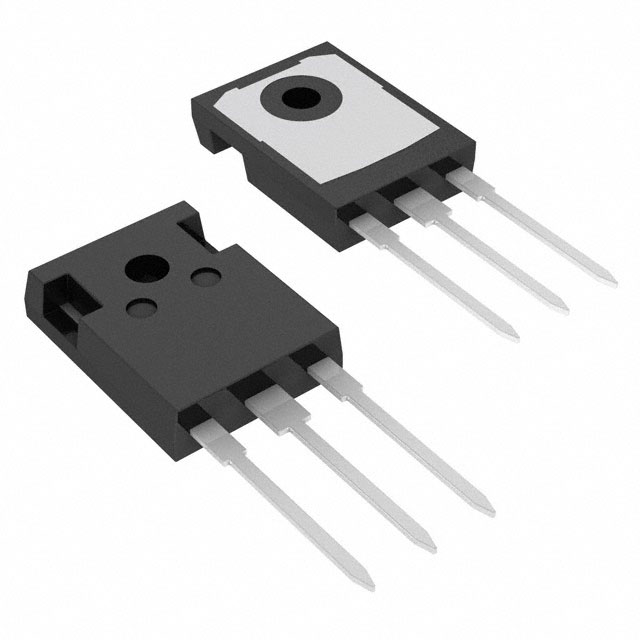

Select this component for high-frequency power conversion designs requiring fast recovery times. Evaluate the 200 V reverse voltage rating against circuit peak voltages. Consider the TO-247-3LD package for through-hole mounting and adequate heat dissipation. Verify that the 15 A average current rating meets the continuous load requirements of the application.

Part Context

This device belongs to the RURG series of ultrafast dual diodes manufactured by onsemi. It utilizes planar technology and ion-implanted epitaxial construction to achieve its fast switching characteristics. The dual configuration allows for efficient use of board space in bridge or half-bridge topologies common in industrial power electronics.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Ensure replacement parts match the 200 V rating, 15 A current capacity, and TO-247-3LD package dimensions. Verify equivalent reverse recovery times and avalanche ratings for functional compatibility.

FAQ

What is the reverse recovery time at 15 A?

The reverse recovery time (trr) is 35 ns when tested at IF = 15 A and dIF/dt = 100 A/µs.

Is the device avalanche energy rated?

Yes, the RURG1520CC is avalanche energy rated, supporting up to 20 mJ as specified in the absolute maximum ratings.

What is the maximum operating junction temperature?

The maximum operating junction temperature (TJ) is 175°C.
