RV8H-2L-AD12-C1D2

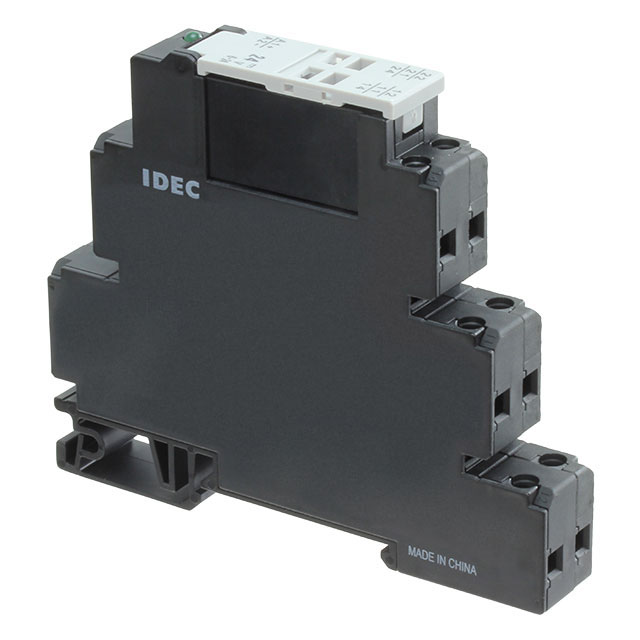

RV8H-2L-AD12-C1D2 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists IDEC. Its product description is RELAY GEN PURPOSE DPDT 8A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RV8H-2L-AD12-C1D2

• Description：RELAY GEN PURPOSE DPDT 8A 12V
• Series：RV8
• Mfr：IDEC
• Package：Bulk
• Mounting Type：DIN Rail
• Coil Voltage：12VAC/DC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：8:00 AM
• Switching Voltage：250VAC - Nom
• Load - Max Switching：-
• Coil Current：29 mA
• Coil Type：Non Latching
• Features：Socket Included
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：9.6 VAC/DC
• Must Release Voltage：0.84 VAC/DC
• Operating Temperature：-40°C ~ 55°C
• Contact Material：Silver Nickel (AgNi), Gold (Au)
• Approval Agency：CE, cULus
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for RV8H-2L-AD12-C1D2
