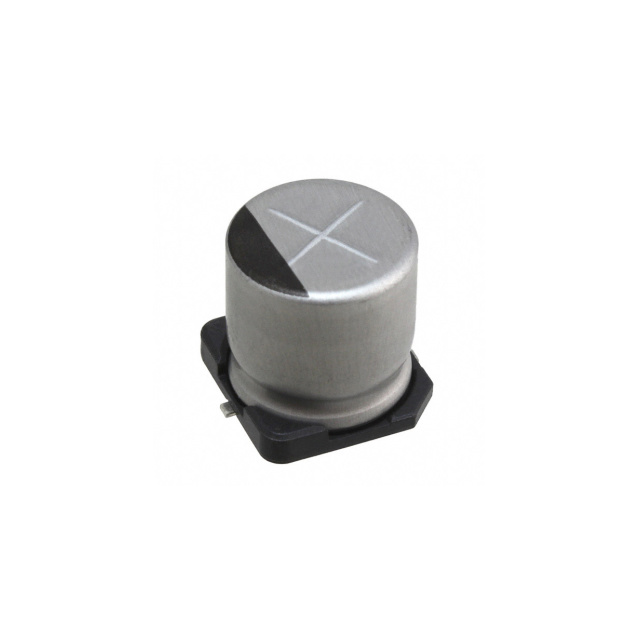

RVZ-35V151MH10U-R2

RVZ-35V151MH10U-R2 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Elna America. Its product description is CAP ALUM 150UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for RVZ-35V151MH10U-R2

• Description：CAP ALUM 150UF 20% 35V SMD
• Series：RVZ
• Mfr：Elna America
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：150 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：335 mA @ 120 Hz
• Ripple Current @ High Frequency：670 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.394" Dia (10.00mm)
• Height - Seated (Max)：0.413" (10.50mm)
• Surface Mount Land Size：0.409" L x 0.409" W (10.40mm x 10.40mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：100 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for RVZ-35V151MH10U-R2
