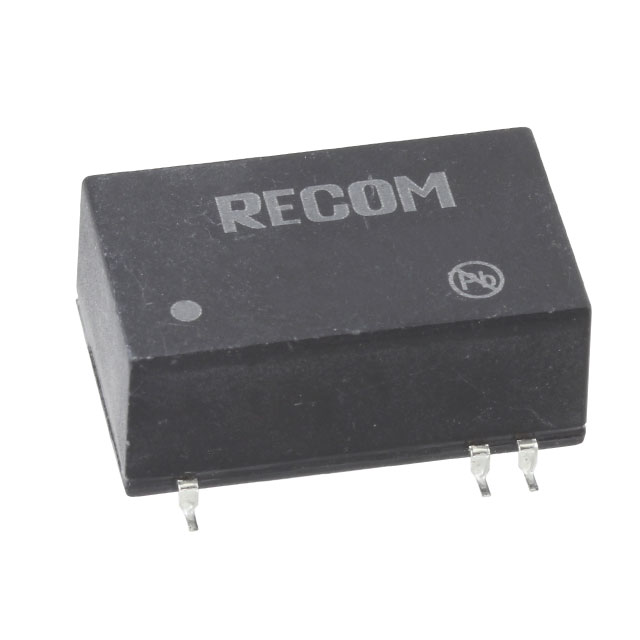

RW2-2409D/SMD

RW2-2409D/SMD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-9V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RW2-2409D/SMD

• Description：DC DC CONVERTER +/-9V 2W
• Series：ECONOLINE RW2 (2W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：9V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Current - Output (Max)：111mA, 111mA
• Power (Watts)：2 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：81%
• Mounting Type：Surface Mount
• Package / Case：16-SMD Module, 6 Leads
• Size / Dimension：0.95" L x 0.57" W x 0.40" H (24.2mm x 14.5mm x 10.2mm)

DC DC Converters datasheet and documents for RW2-2409D/SMD
