S-19252C27H-A4T7U4

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

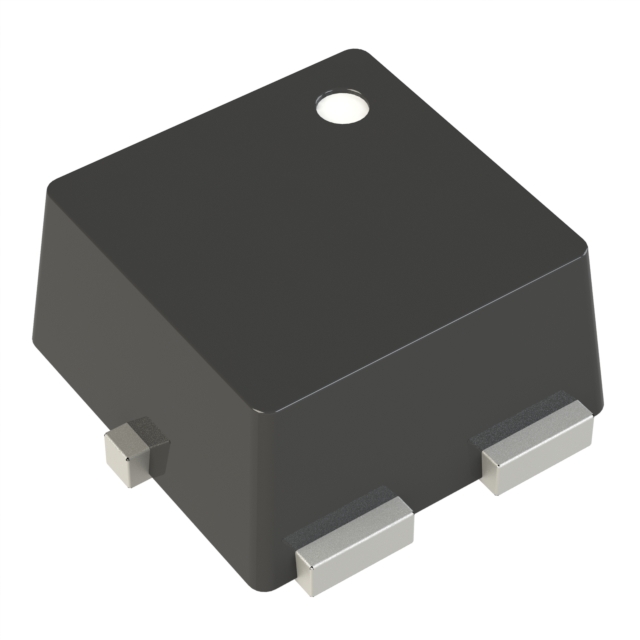

The S-19252C27H-A4T7U4 is an automotive-grade low-dropout voltage regulator manufactured by ABLIC Inc. It provides a fixed output voltage of 2.7 V with a maximum output current capability of 150 mA. The device operates within an input voltage range of 1.5 V to 5.5 V and supports junction temperatures from -40°C to +105°C. Key electrical characteristics include a typical ripple rejection of 80 dB at 1.0 kHz and a quiescent current consumption of 36 μA during operation. The component utilizes the HSNT-4(1010)B package.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Incorporates a built-in soft-start circuit to control output voltage rise time upon power-on or activation of the ON/OFF pin.
• Features high ripple rejection performance suitable for noise-sensitive automotive applications.
• Includes an overcurrent protection circuit to limit output transistor current during fault conditions.
• Supports ceramic capacitors for both input and output filtering requirements.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Automotive meter systems
• Car body electronics
• Headlight control circuits
• Car navigation systems
• Car audio systems

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific product type code 'C' configuration, which indicates unavailable discharge shunt function and available pull-down resistor functionality. Confirm that the HSNT-4(1010)B package designation matches the required footprint for the target design. Ensure compliance with the specified operating temperature range and thermal dissipation limits before finalizing procurement orders.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 2.7 V output is required for automotive environments. The C-type variant is appropriate if a pull-down resistor is needed during power-off but discharge shunt functionality is not required. Consider the HSNT-4(1010)B package for applications demanding super-small surface-mount mounting density compared to standard SOT-23-5 options.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the S-19252 Series developed using CMOS process technology. The series is designed as a positive voltage regulator with high-accuracy output voltage. It is qualified under AEC-Q100 standards for automotive reliability. The manufacturer offers thermal simulation services to assist in designing safe operating conditions for power management ICs in vehicle equipment.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ

What is the soft-start behavior for the S-19252C27H-A4T7U4?

The S-19252C27H-A4T7U4 features a fixed soft-start time of approximately 0.1 ms. Unlike J/K/L/M types, it does not have a switchable SST pin for adjusting this duration.

Does this regulator support discharge shunt function?

No, the 'C' product type designation indicates that the discharge shunt function is unavailable. However, it does include a pull-down resistor function.
