S-19683B60A-A8T1U4

Overview

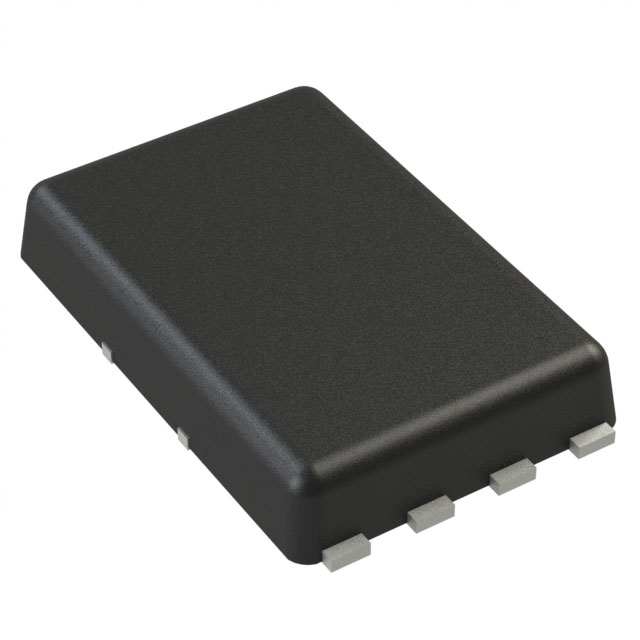

The S-19683B60A-A8T1U4 is a high-side switch with current monitor function developed using CMOS technology. It features a P-channel output transistor and operates within a core supply voltage range of 4.5V to 36V. The device provides a peak output current of 600mA with a typical on-resistance of 600mOhm. It utilizes a non-inverting entry signal category for control. The component is housed in an HSNT-8-A package, designed for surface-mount applications requiring precise power distribution and monitoring capabilities.

Feature Summary

• Integrates high-side switching with built-in current monitoring functionality
• Utilizes P-channel output transistor for efficient power control
• Features non-inverting entry signal for straightforward logic interfacing

Applications

• Power distribution systems requiring load monitoring
• High-side switch applications in automotive electronics
• Industrial equipment needing protected power channels

Procurement Notes

Verify the specific suffix A8T1U4 against official ABLIC documentation to confirm packaging and tape specifications. Ensure compatibility with HSNT-8-A footprint requirements during layout design. Confirm that the 4.5V minimum operating voltage aligns with system power rails. Validate current monitor threshold settings against application safety limits before integration.

Selection Notes

Select this component when integrated current sensing is required alongside high-side switching. The 600mA peak current capability suits moderate load applications. The wide input voltage range supports various bus architectures. Consider the non-inverting control logic if it matches existing system signaling standards. Evaluate thermal performance based on the specific on-resistance and load conditions.

Part Context

This part belongs to the S-19683B series of high-side switches from ABLIC Inc. The series focuses on providing reliable power management with diagnostic features. The B60A variant specifically denotes the electrical characteristics and package type. It complements other PMIC solutions by offering combined switching and monitoring in a compact form factor.

Replacement Considerations

Direct substitutes must match the HSNT-8-A package and 600mA current rating. Verify equivalent current monitor functionality and non-inverting control logic. Cross-reference the 4.5V to 36V operating range with potential alternative components.
