S0402-27NJ1Y

Fixed Inductors Overview

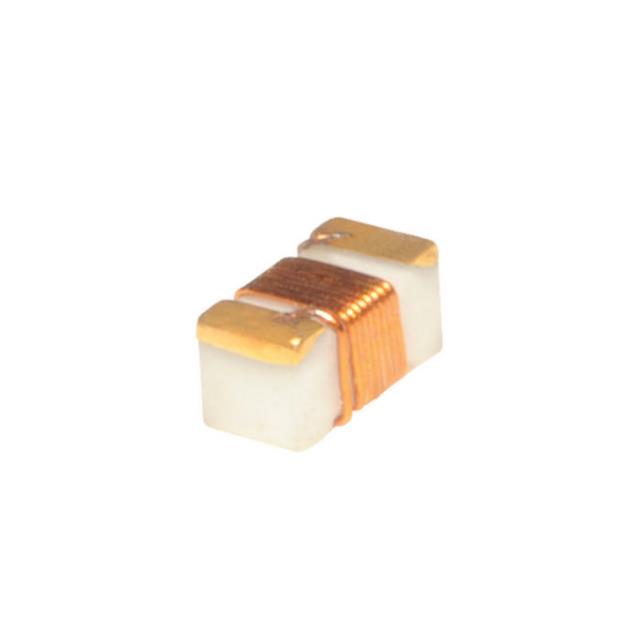

The S0402-27NJ1Y is a fixed surface-mount inductor from the Delevan S0402 series. It features an inductance of 27 nH with a tolerance of ±5%. The component has a maximum DC resistance of 360 mOhms and supports a maximum current of 400 mA. It utilizes an unshielded wirewound construction within a standard 0402 (1005 metric) package footprint.

Fixed Inductors Feature Summary

• Unshielded wirewound design for RF applications
• Compact 0402 surface-mount form factor
• High reliability construction suitable for demanding environments

Fixed Inductors Applications

• RF circuit filtering
• Impedance matching networks
• General purpose RF signal processing

Fixed Inductors Procurement Notes

Verify availability status carefully as this specific part number may be obsolete or discontinued. Confirm lead times and end-of-life notifications directly with API Delevan or authorized distributors before finalizing procurement plans to ensure supply continuity.

Fixed Inductors Selection Notes

Select this component when a low-inductance, high-current RF solution is required in a minimal footprint. Ensure the 400 mA current rating and 360 mOhm DCR meet the specific circuit requirements. Verify that the unshielded topology does not cause interference in dense layouts.

Fixed Inductors Part Context

This part belongs to the S0402 series of fixed inductors manufactured by API Delevan. The series specializes in high-reliability chip inductors designed for surface-mount technology. These components are engineered for consistent performance in radio frequency and general-purpose electronic applications.

Fixed Inductors Replacement Considerations

Public sources indicate this part number is marked as obsolete. No specific public substitute part numbers are confirmed in the provided documentation. Engineers should consult API Delevan for current equivalent recommendations or alternative series members.
