S11805T-27.000-A-X1-R

Oscillators Overview

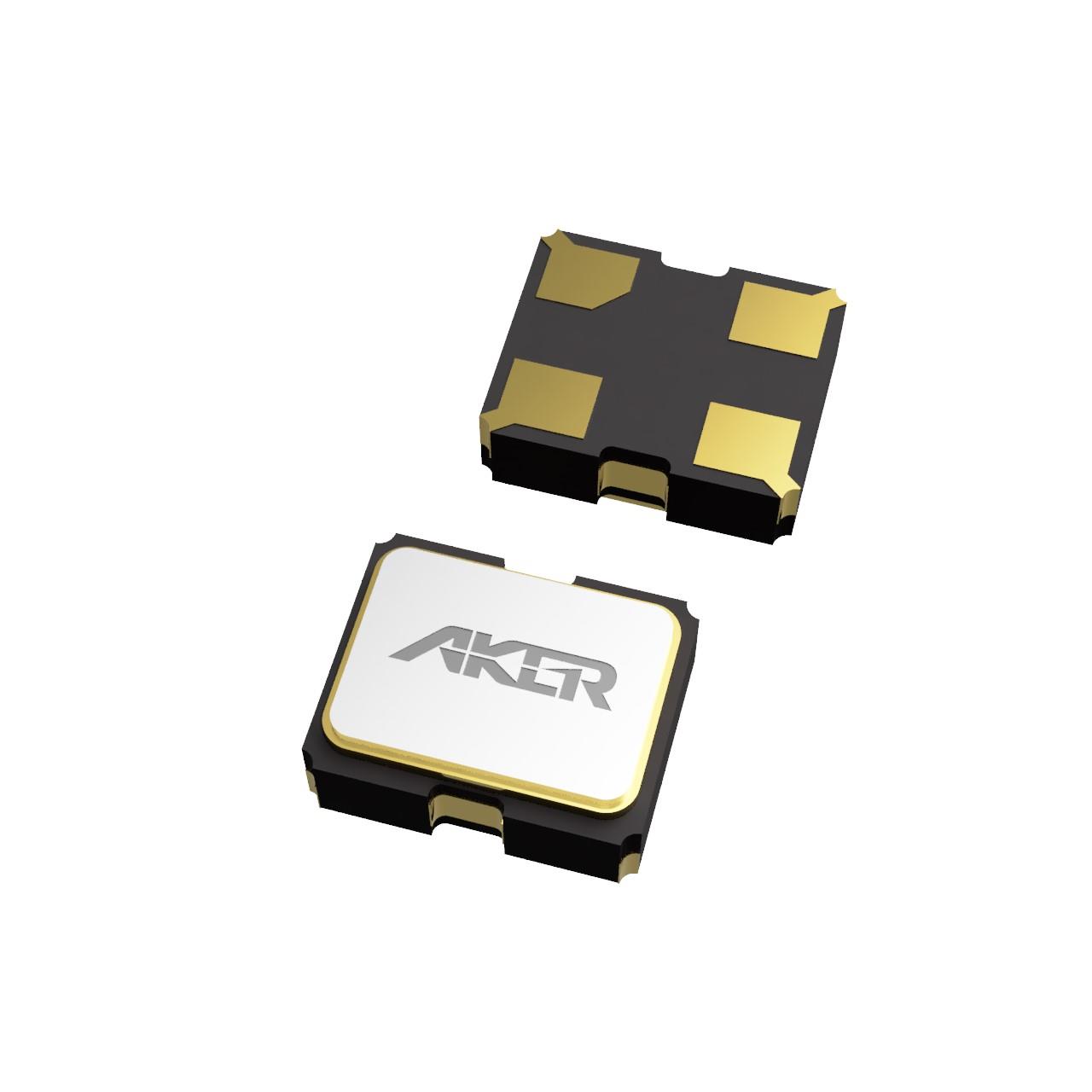

The S11805T-27.000-A-X1-R is a 27 MHz HCMOS crystal oscillator manufactured by Aker Technology Corp. It operates at a supply voltage of 1.8V and features an enable/disable control function. The component is housed in a compact 4-SMD, No Lead package, designed for surface-mount applications requiring standard frequency stability.

Oscillators Feature Summary

• HCMOS output signal compatibility
• Integrated enable/disable functionality
• Low-voltage 1.8V operation
• Compact surface-mount form factor

Oscillators Applications

• Consumer electronics timing circuits
• Portable device clock generation
• Embedded system synchronization
• Communication interface clocks

Oscillators Procurement Notes

Verify the complete part number including suffixes such as -A-X1-R against official manufacturer documentation to ensure correct voltage, package, and enable pin configuration. Confirm RoHS compliance status and lead-free specifications through current datasheets before procurement.

Oscillators Selection Notes

Select this component when a 27 MHz HCMOS output is required with low power consumption. Ensure the design supports 1.8V logic levels and utilizes the enable feature for power management. Verify footprint compatibility with the 4-SMD no-lead package dimensions.

Oscillators Part Context

This model belongs to the S11805T series of standard crystal oscillators from Aker Technology Corp. The series offers various frequencies and voltage options within a small surface-mount package, targeting applications where space constraints and low power are critical design factors.

Oscillators Replacement Considerations

Check for direct substitutes like S11805T-27.000-R or S11805T-27.000-M if the specific -A-X1-R suffix is unavailable. Ensure replacement parts match the 27 MHz frequency, HCMOS output type, and 1.8V operating voltage requirements.
