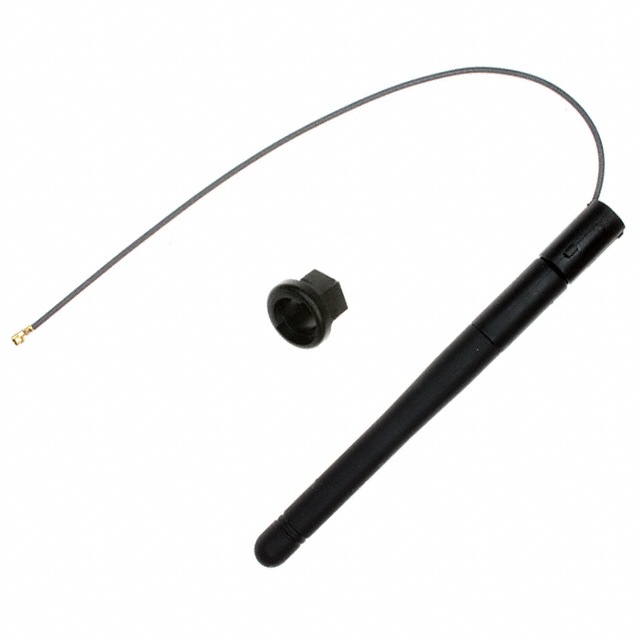

S131CL-6-PX-2450S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 2.4GHZ WHIP/TILT CONN 6". Review the specifications below when checking this part for your BOM.
Antennas RF specifications for S131CL-6-PX-2450S
- Description：RF ANT 2.4GHZ WHIP/TILT CONN 6"
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：Cable - 152mm
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：3.425" (87.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for S131CL-6-PX-2450S
Antennas RF Overview
The Nearson Inc. S131CL-6-PX-2450S is a wide band RF antenna operating at the 2.4 GHz frequency group. It features a whip and tilt design with a maximum height of 9.331 inches (237.00mm) and a gain of 3 dBi. The unit utilizes a connector mount type and includes a 152mm cable terminating in a U.FL (UMCC) or I-PEX MHF1 interface.
Antennas RF Feature Summary
- Whip and tilt structural design for flexible orientation
- Wide band operation within the 2.4 GHz frequency group
- Integrated 152mm cable with U.FL/I-PEX MHF1 termination
Antennas RF Applications
- Wireless communication systems requiring 2.4 GHz connectivity
- IoT device integration
- Industrial telemetry links
Antennas RF Procurement Notes
Verify the specific termination compatibility, as sources list both U.FL and I-PEX MHF1 interfaces. Confirm RoHS compliance status prior to procurement. Ensure the mounting type aligns with the target assembly requirements. Cross-reference the manufacturer part number to avoid confusion with similar wide band variants.
Antennas RF Selection Notes
Select this component for applications necessitating a 3 dBi gain at 2.4 GHz. The tilt capability allows for optimized signal directionality. The compact cable length suits space-constrained enclosures. Verify that the connector interface matches the host device's RF port specifications before finalizing the selection.
Antennas RF Part Context
This model belongs to the Nearson Inc. RF Antenna category, specifically designed for wireless data transmission. It serves as a dedicated solution for devices operating in the ISM band. The product distinguishes itself through its adjustable tilt mechanism and standardized connector options, facilitating easy integration into various electronic assemblies.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate other Nearson wide band antennas for potential compatibility, ensuring identical frequency and gain specifications.
