S14100038

$3.41

Description：CMC 560UH 20A 2LN TH
Series：WE-CMB
Mfr：Würth Elektronik
Package：Tray

SKU:11cdc99ed716 Category: Common Mode Chokes Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S14100038 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is CMC 560UH 20A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for S14100038

Description：CMC 560UH 20A 2LN TH
Series：WE-CMB
Mfr：Würth Elektronik
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：20A
DC Resistance (DCR) (Max)：2.8mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.181" Dia x 0.768" L (30.00mm x 19.50mm)
Height (Max)：1.142" (29.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：560 µH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for S14100038

S14100038

Common Mode Chokes Overview

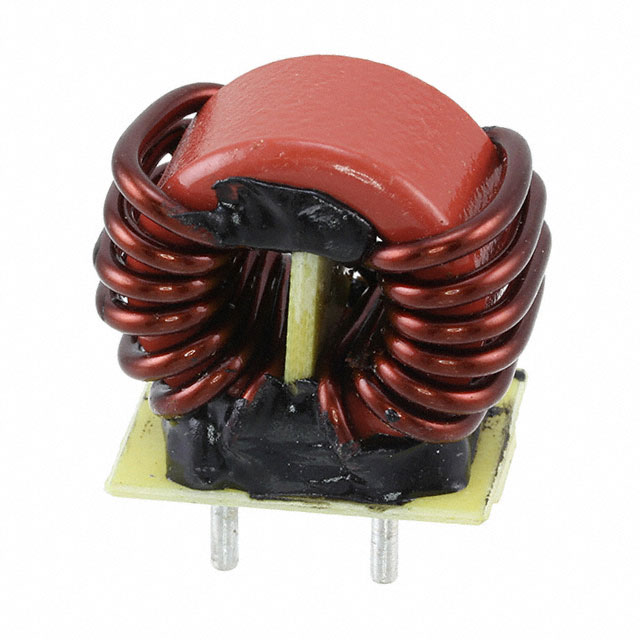

The Würth Elektronik S14100038 is a through-hole common mode choke belonging to the WE-CMBH series, designed for power line filtering. It features a toroidal core with two windings, providing an inductance of 560 µH at 10 kHz. The component supports a maximum current of 20 A and exhibits a low DC resistance of 2.8 mΩ. It utilizes leads with a diameter of 1.8 mm for mounting.

Common Mode Chokes Feature Summary

Toroidal magnetic core construction
Two-line configuration for power lines
Through-hole leaded package

Common Mode Chokes Applications

Power line filtering
Common mode noise suppression

Common Mode Chokes Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm technical specifications. Ensure compatibility with required current ratings and inductance values for the intended circuit design. Cross-reference datasheets for accurate electrical parameters before integration.

Common Mode Chokes Selection Notes

Select this component for applications requiring robust common mode noise attenuation in power circuits. Consider the 20 A current rating and 2.8 mΩ DC resistance when evaluating thermal performance and voltage drop. Verify that the through-hole form factor aligns with the target PCB layout constraints.

Common Mode Chokes Part Context

This component is part of the WE-CMBH series from Würth Elektronik, which specializes in common mode chokes for power line filtering. The series offers various inductance and current ratings to suit different electronic equipment requirements.
