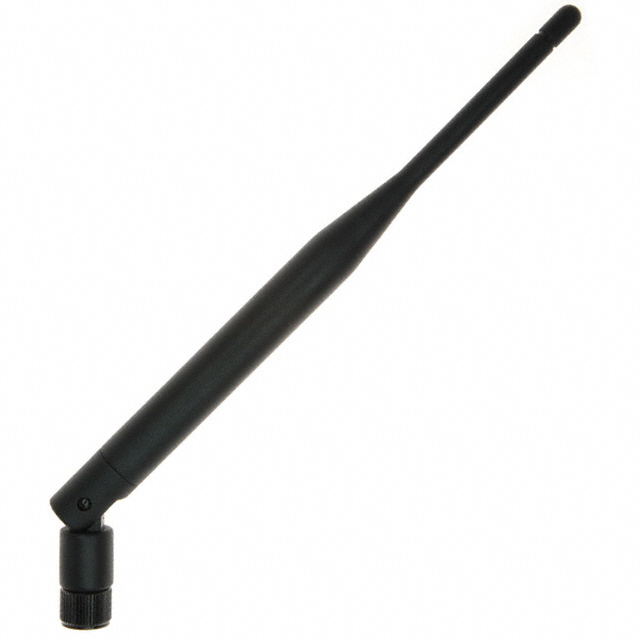

S151AH-2450S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 2.4GHZ WHIP TILT RP-SMA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for S151AH-2450S
- Description：RF ANT 2.4GHZ WHIP TILT RP-SMA
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：7.717" (196.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for S151AH-2450S
Antennas RF Overview
The S151AH-2450S is a single-band RF antenna designed for the UHF frequency group, specifically operating within the 2.4GHz to 2.5GHz range with a center frequency of 2.4GHz. It features a whip-style design with tilt capability and utilizes an RP-SMA connector for termination. The antenna exhibits a Voltage Standing Wave Ratio (VSWR) of 2 and provides a gain of 4dBi. The maximum height of the component is specified as 5.394 inches (137.00mm). It is classified as a connector-mounted device intended for wireless communication applications.
Antennas RF Feature Summary
- Whip-style antenna structure with tilt functionality
- RP-SMA reverse polarity connector interface
- Single-band operation in the 2.4GHz ISM band
Antennas RF Applications
- Wireless local area network (WLAN) devices
- Bluetooth-enabled consumer electronics
- Industrial, Scientific, and Medical (ISM) radio equipment
Antennas RF Procurement Notes
Verify the specific connector type upon ordering, as datasheets may list SMA male while product titles indicate RP-SMA. Confirm RoHS compliance status directly with the manufacturer or authorized distributor. Ensure the mounting configuration matches the application requirements due to the fixed connector installation type.
Antennas RF Selection Notes
Select this component when a compact, tilted whip antenna is required for 2.4GHz applications. The 4dBi gain and VSWR of 2 provide standard performance for short-range wireless links. Consider the 137mm height constraint during mechanical design integration to ensure adequate clearance for the whip element.
Antennas RF Part Context
This model belongs to Nearson Inc.'s RF antenna portfolio, categorized under wireless and communication components. It serves as a specialized solution for embedded wireless modules requiring reliable signal transmission in the unlicensed 2.4GHz spectrum. The part is distinct from other series by its specific tilt mechanism and connector configuration.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing enclosures and connector polarities before considering alternative models from different manufacturers.
