S151FL-5-RMM-2450S

Antennas RF Overview

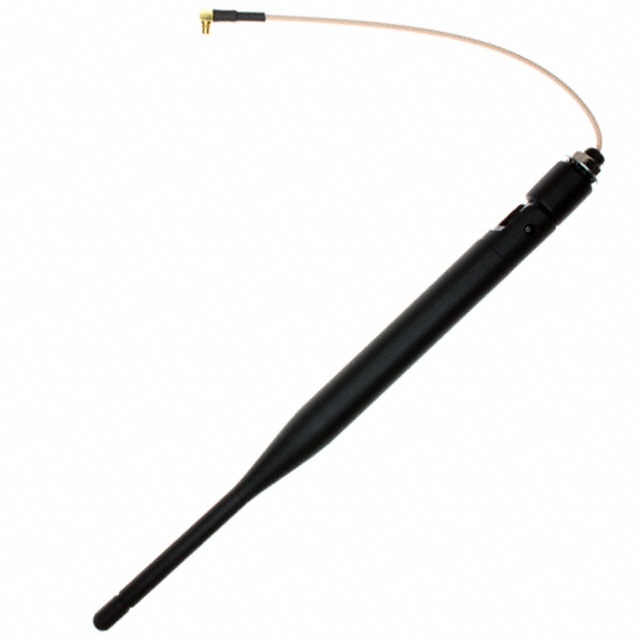

The S151FL-5-RMM-2450S is a 2.4 GHz RF antenna manufactured by Nearson Inc. It features a whip design with tilt capability and a 5-inch cable length. The maximum height of the unit is 7.618 inches (193.50 mm). The component utilizes an MMCX male connector for panel mounting applications. The product complies with RoHS standards and is not subject to moisture sensitivity level classifications.

Antennas RF Feature Summary

• Whip-style antenna construction with adjustable tilt functionality
• Integrated 5-inch cable for flexible installation routing
• MMCX male connector interface designed for secure panel mounting

Antennas RF Applications

• Wireless communication devices operating in the 2.4 GHz band
• Industrial equipment requiring robust RF connectivity
• Embedded systems utilizing MMCX panel mount interfaces

Antennas RF Procurement Notes

Verify that the specific part number matches the required MMCX male connector configuration and 5-inch cable length. Confirm RoHS compliance status if environmental regulations apply to your assembly process. Ensure the mounting hole dimensions align with the panel requirements for the specified antenna base.

Antennas RF Selection Notes

Select this model when a tilting whip antenna is necessary for optimizing signal directionality in confined spaces. The fixed 5-inch cable length dictates the distance between the mounting point and the RF source. Verify that the device supports the 2.4 GHz frequency range and accommodates the physical height constraints imposed by the 7.618-inch maximum dimension.

Antennas RF Part Context

This component belongs to the Nearson S151FL series of RF antennas. The series typically includes variants with different cable lengths or connector types, such as the S151M2 series which may feature swivel mechanisms. The S151FL designation specifically denotes the whip style with tilt adjustment capabilities rather than a fully rotatable swivel mechanism found in other family members.

Antennas RF Replacement Considerations

Direct substitutes within the same manufacturer line include models like the S151FL-L-RMM-2450S, which offers similar specifications but may differ in gain or mechanical details. Cross-manufacturer replacements require matching the 2.4 GHz frequency, MMCX male connector type, and panel mount form factor.
