S152AH-2450S

Antennas RF Overview

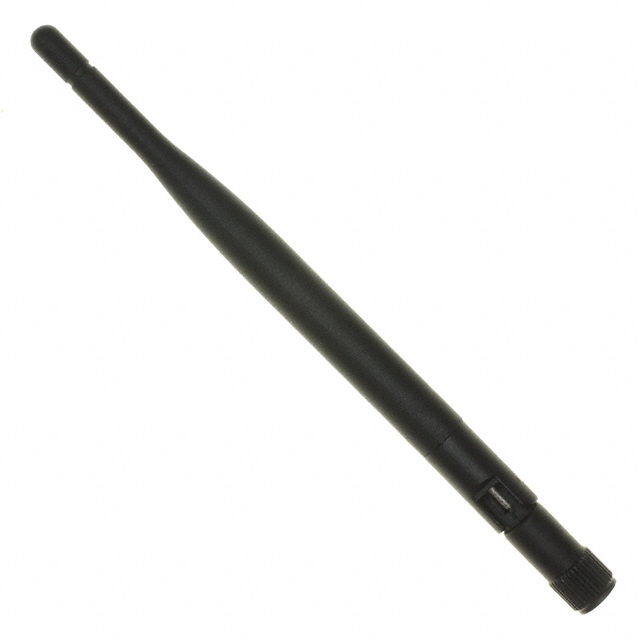

The S152AH-2450S is a 2.4 GHz whip antenna manufactured by Nearson Inc., designed for ISM band applications. It operates within the 2.4–2.5 GHz frequency range with a gain of 4 dBi and a VSWR of 2. The component features an SMA male connector with reverse polarity (RP-SMA) mounting type. Constructed as a 1/4 wave tilt antenna, it supports swivel functionality for directional adjustment. The unit is packaged in bulk and complies with RoHS standards, ensuring lead-free composition for environmental safety.

Antennas RF Feature Summary

• Whip-style design with tilt capability for directional signal optimization
• Reverse polarity SMA male connector interface for secure attachment
• Swivel mount structure allowing flexible orientation adjustments
• RoHS compliant construction utilizing lead-free materials

Antennas RF Applications

• Wireless LAN devices operating in the 2.4 GHz ISM band
• Bluetooth-enabled consumer electronics requiring omnidirectional coverage
• Industrial wireless sensor networks needing robust RF connectivity
• IoT gateways and hubs utilizing standard 2.4 GHz protocols

Antennas RF Procurement Notes

Verify that the received units match the S152AH-2450S part number exactly. Confirm the presence of the RP-SMA male connector and check for physical damage to the whip element. Ensure documentation confirms RoHS compliance status. Inspect packaging integrity to prevent contamination during storage. Cross-reference manufacturer batch codes against current quality certifications before integration into production lines.

Antennas RF Selection Notes

Select this component when a fixed-gain 4 dBi solution is required for 2.4 GHz systems. The reverse polarity connector necessitates matching PCB or cable interfaces. Consider the swivel feature if mechanical alignment flexibility is critical. Evaluate space constraints due to the whip form factor. Ensure operational temperature ranges align with specific device requirements before finalizing the bill of materials.

Antennas RF Part Context

This antenna belongs to Nearson Inc.'s RF antenna portfolio, specifically targeting the 2.4 GHz ISM band. It complements other models like the S282AH-2450S by offering similar frequency coverage but with distinct connector and style variations. The product line focuses on reliable wireless communication components for industrial and commercial applications.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing connector types before considering alternative manufacturers. Ensure any replacement maintains the 4 dBi gain and 2.4 GHz frequency specifications.
