S171AH-2450S

Antennas RF Overview

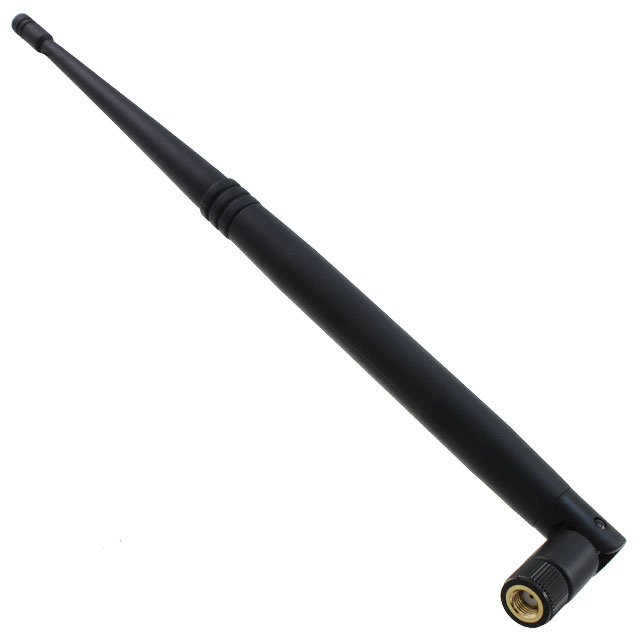

The S171AH-2450S is a whip-style RF antenna manufactured by Nearson Inc., designed for operation within the 2.4GHz to 2.5GHz frequency band, specifically targeting the ISM 2.4GHz range. It features a center frequency of 2.4GHz and provides a gain of 7dBi. The component utilizes an RP-SMA male connector mount with a tilt/swivel style design. Its maximum height is specified as 10.551 inches (268.00mm). The unit exhibits a Voltage Standing Wave Ratio (VSWR) of 2 and supports one frequency band. It is RoHS3 compliant.

Antennas RF Feature Summary

• Whip-style construction with tilt and swivel functionality for directional adjustment
• Operates in the 2.4GHz to 2.5GHz ISM frequency band
• Equipped with an RP-SMA male connector for mounting
• RoHS3 compliant manufacturing standard

Antennas RF Applications

• Wireless communication systems operating in the 2.4GHz ISM band
• RFID infrastructure requiring directional antenna adjustment
• Industrial, Scientific, and Medical equipment utilizing 2.4GHz frequencies

Antennas RF Procurement Notes

Verify the specific revision status against the manufacturer's current documentation, as RoHS3 compliance indicates adherence to updated restriction standards. Confirm that the RP-SMA male connector orientation matches the receiving equipment interface requirements. Ensure the physical dimensions, particularly the 268.00mm height, fit the intended installation space without obstruction. Cross-reference the part number S171AH-2450S with official Nearson Inc. catalogs to confirm availability and lead times before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when a fixed-frequency 2.4GHz antenna with adjustable orientation is required. The 7dBi gain offers moderate signal enhancement suitable for general-purpose wireless links. The tilt/swivel feature allows for precise polarization alignment. Ensure the application environment accommodates the 268.00mm vertical clearance. This model is appropriate for installations where mechanical adjustability is prioritized over compact form factors.

Antennas RF Part Context

The S171AH-2450S belongs to the S171AH series of RF antennas from Nearson Inc. This series typically includes various configurations for the 2.4GHz band. The suffix '2450' denotes the specific frequency target, while 'S' likely indicates the connector type or version. It is distinct from other series like the S282AH, which may share similar frequency ranges but differ in physical style or connector specifications.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with existing mounting hardware and connector interfaces if considering alternative models from the same manufacturer or other vendors.
