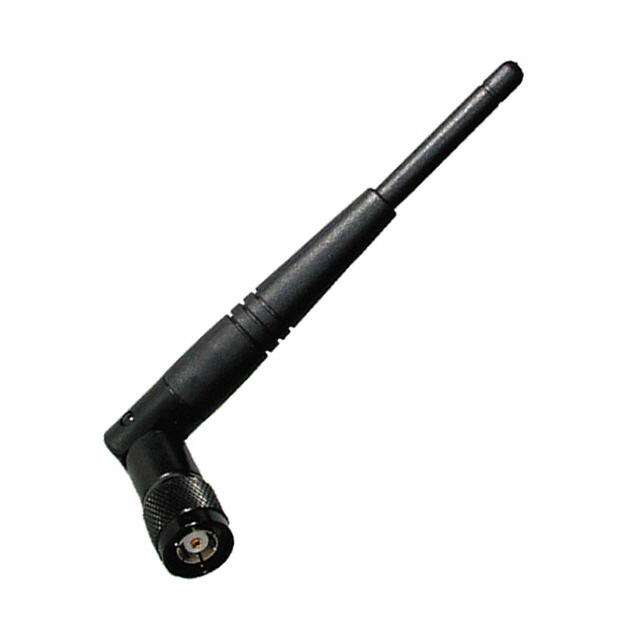

S181AH-2450S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 2.4GHZ WHIP TILT RP-SMA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for S181AH-2450S
- Description：RF ANT 2.4GHZ WHIP TILT RP-SMA
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.213" (107.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for S181AH-2450S
Antennas RF Overview
The S181AH-2450S is a 2.4 GHz whip antenna manufactured by Nearson Inc., designed for ISM band applications. It features a tilt mechanism and utilizes an RP-SMA male connector for mounting. The operating frequency range spans from 2.4 GHz to 2.5 GHz, aligning with standard wireless communication protocols. This component serves as a radio frequency antenna solution for devices requiring reliable signal transmission within the specified industrial, scientific, and medical frequency spectrum.
Antennas RF Feature Summary
- Whip style design with integrated tilt functionality
- RP-SMA male connector interface for secure mounting
- Optimized for 2.4 GHz to 2.5 GHz ISM band operations
Antennas RF Applications
- Wireless communication devices operating in the 2.4 GHz ISM band
- Industrial, Scientific, and Medical (ISM) equipment requiring RF connectivity
- IoT modules and sensors utilizing standard Wi-Fi or Bluetooth frequencies
Antennas RF Procurement Notes
Verify the specific connector type and mechanical dimensions against the official datasheet before integration. Confirm RoHS compliance status if required for your manufacturing process. Ensure the RP-SMA male interface matches your host device's receptacle. Cross-reference the part number with the manufacturer's current documentation to confirm availability and lead times.
Antennas RF Selection Notes
Select this model when a tilting whip antenna is required for 2.4 GHz applications. The RP-SMA male connector dictates compatibility with corresponding female jacks. Consider the physical profile and tilt range for enclosure design. Validate that the frequency range covers the specific operational bandwidth of the target wireless protocol.
Antennas RF Part Context
This component belongs to Nearson Inc.'s RF antenna portfolio, specifically tailored for wireless data transmission. It shares design characteristics with other models in the series but is distinct due to its tilt feature and RP-SMA connector configuration. The part is engineered for robust performance in standard ISM band environments.
Antennas RF Replacement Considerations
Compatible substitutes include the S171AH-2450S and S131AH-2450S from Nearson Inc., which share similar frequency specifications. Verify connector polarity and mechanical fit before substitution. Other manufacturers' 2.4 GHz whip antennas may require adapter modifications.
