S181FL-5-RMM-2450S

Antennas RF Overview

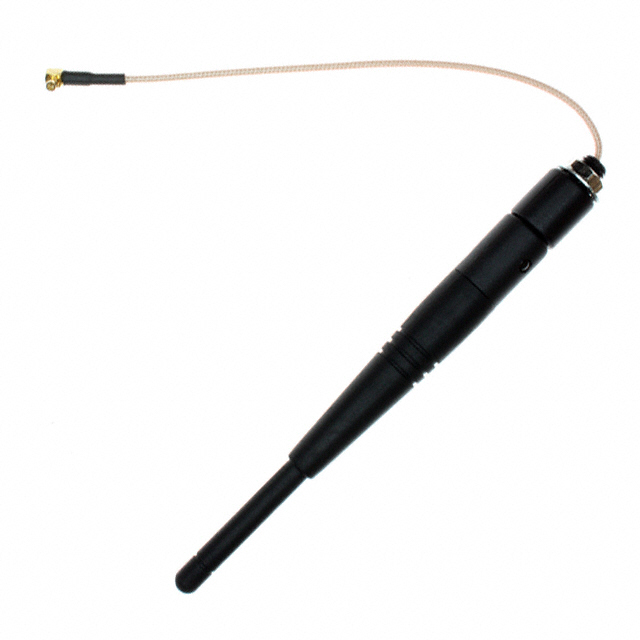

The S181FL-5-RMM-2450S is a 2.4 GHz whip and tilt panel mount antenna manufactured by Nearson Inc. It operates within the 2.4 GHz to 2.5 GHz frequency range with a single band configuration. The unit features an MMCX male termination for secure connectivity. The maximum height of the assembly is 4.213 inches (107.00 mm). This component complies with RoHS standards, ensuring it is lead-free and restricted hazardous substance compliant.

Antennas RF Feature Summary

• Whip and tilt design for flexible orientation adjustment
• Panel mounting type for stable installation
• MMCX male connector interface

Antennas RF Applications

• Wireless networking projects requiring 2.4 GHz connectivity
• Embedded systems integration
• Industrial RF communication setups

Antennas RF Procurement Notes

Verify the specific MMCX male termination against your device's input port to ensure physical compatibility. Confirm that the panel mount style aligns with your enclosure design constraints. Check RoHS compliance requirements if operating in regulated environments. Ensure the 2.4 GHz frequency range matches your system's operational bandwidth needs before finalizing procurement.

Antennas RF Selection Notes

Select this model when a fixed panel-mounted solution with adjustable tilt is required for 2.4 GHz applications. The whip style offers omnidirectional coverage suitable for general wireless networking. Consider the 107.00 mm height dimension for clearance within the installation space. The MMCX connector is standard for many compact RF modules, simplifying integration without additional adapters.

Antennas RF Part Context

This part belongs to the S181FL series of rubber duck antennas from Nearson Inc. The series includes variants such as the S181FL-L-RMM-2450S swivel antenna and portable options like the S181XX-2450. All share the 2.4-2.5 GHz frequency band but differ in mechanical form factors and mounting styles to suit diverse deployment scenarios.

Antennas RF Replacement Considerations

The S181FL-L-RMM-2450S serves as a comparable alternative within the same series, offering swivel functionality instead of tilt. Both operate at 2.4 GHz with similar mounting characteristics. Verify connector compatibility and dimensional differences when substituting to maintain system integrity.
