S1G-T

Single Diodes Overview

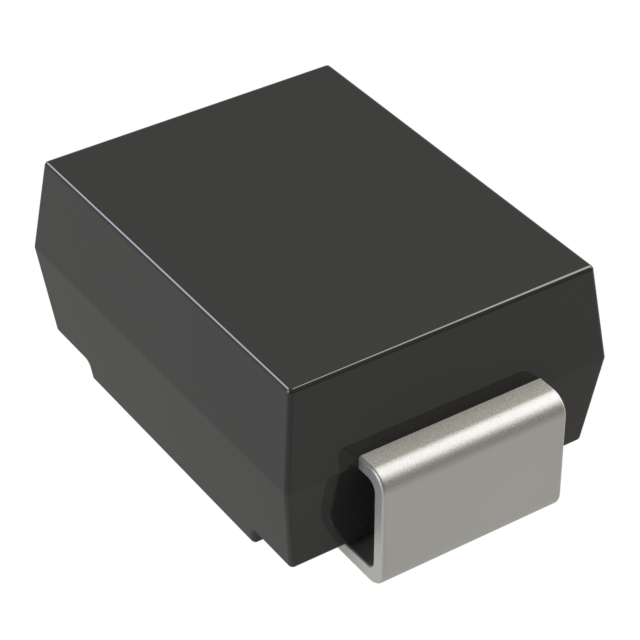

The S1G-T is a general-purpose rectifier diode manufactured by Lumimax Optoelectronic Technology. It features a maximum average forward rectified current of 1A and a repetitive peak reverse voltage of 400V. The component utilizes a DO-214AC (SMA) surface mount package, designed for efficient PCB integration. It is constructed with silicon material to ensure reliable performance in standard rectification applications.

Single Diodes Feature Summary

• Surface mount construction utilizing the SMA (DO-214AC) package format
• Designed for general-purpose rectification tasks
• Capable of handling 1A average forward current

Single Diodes Applications

• General purpose rectification circuits
• Power supply input stages
• DC-DC converter topologies

Single Diodes Procurement Notes

Verify the manufacturer designation as Lumimax Optoelectronic Technology against the specific datasheet provided by the supplier. Confirm the package type matches the required SMA footprint. Ensure the voltage rating aligns with circuit requirements before finalizing procurement orders.

Single Diodes Selection Notes

Select this component when a surface mount solution is required for low-power rectification. The 400V rating suits standard AC line voltages. Compare thermal characteristics if high ambient temperatures are expected. Verify lead availability through authorized distributors.

Single Diodes Part Context

This part belongs to the single diode category within the manufacturer's portfolio. It serves as a surface mount alternative to axial leaded variants. The SMA package allows for automated assembly processes. It complements other rectifiers in the series offering different voltage ratings.

Single Diodes Replacement Considerations

Compatible substitutes include generic SMA packages rated for 1A and 400V. Verify pinout compatibility and thermal resistance values. Ensure the replacement meets the same electrical specifications for peak inverse voltage and forward current.
