S1MFECG

Overview

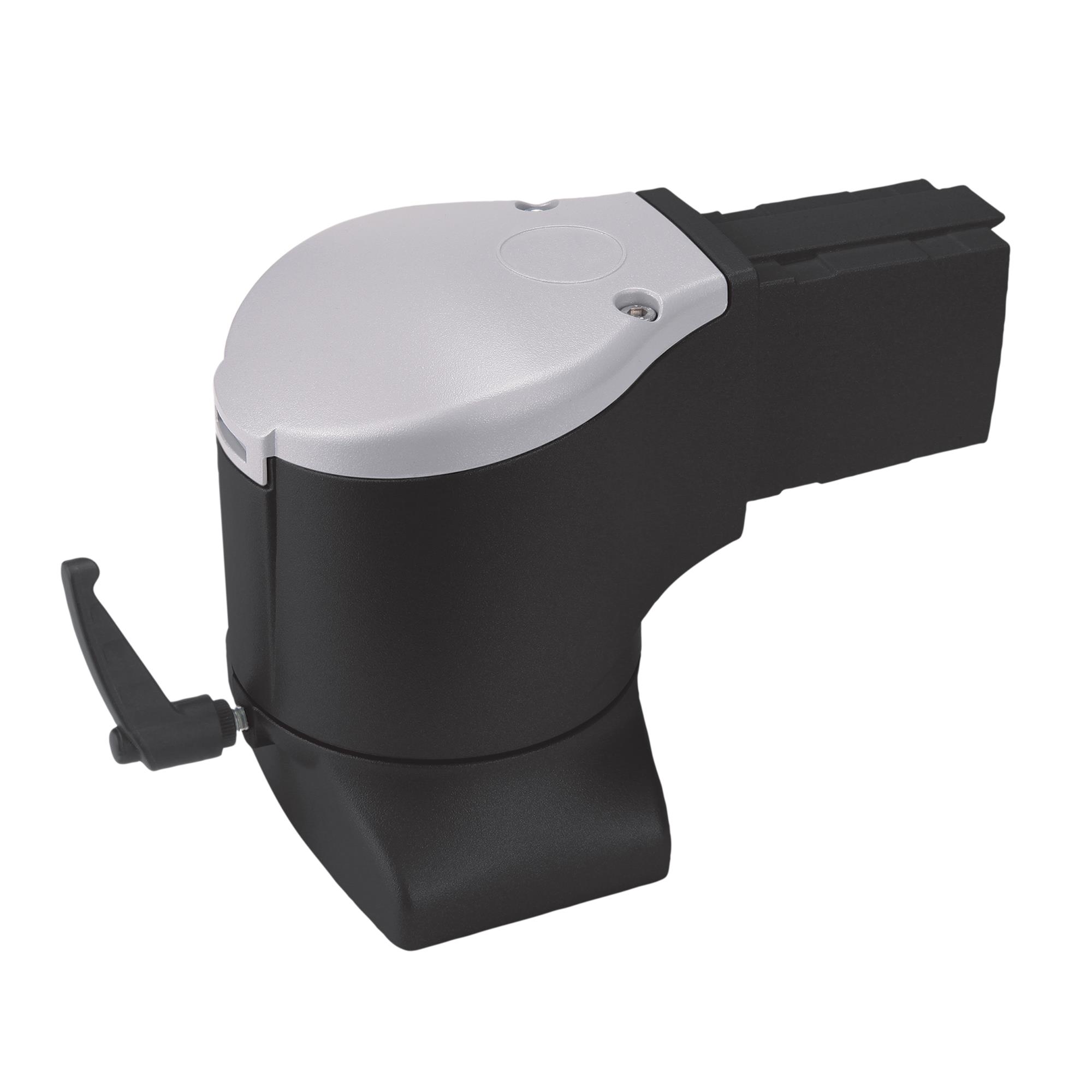

The S1MFECG is a flange elbow coupling designed for the Hoffman Syspend 180-MAX suspension system. Constructed from die-cast aluminum with an RAL7035 light gray finish, it facilitates enclosure mounting without vertical tubes, allowing for 300-degree rotation. The component measures 7.68 inches in width, 3.3 inches in depth, and 4.93 inches in height. It supports a tube size of 1.1 inches by 1.65 inches and meets NEMA 12 and IP66 standards.

Feature Summary

• Enables 300-degree enclosure rotation when used without vertical tubes
• Constructed from die-cast aluminum for durability
• Designed specifically for integration with the Syspend 180-MAX suspension system

Applications

• Mounting electrical enclosures in industrial environments requiring flexible positioning
• Integration into Hoffman Syspend 180-MAX overhead suspension setups
• Applications necessitating NEMA 12 or IP66 rated protection for suspended equipment

Procurement Notes

Verify compatibility with the specific Hoffman Syspend 180-MAX series components before procurement. Confirm that the required tube dimensions match the specified 1.1-inch width and 1.65-inch height. Ensure the installation environment aligns with the NEMA 12 and IP66 rating requirements. Check official documentation for any updates regarding mounting hardware or torque specifications associated with this coupling.

Selection Notes

Select this component when utilizing the Hoffman Syspend 180-MAX system and needing to eliminate vertical tubing while maintaining rotational flexibility. It is suitable for applications requiring a robust aluminum construction and standard industrial ingress protection. Consider the physical dimensions (7.68 x 3.3 x 4.93 inches) to ensure adequate space within the suspension layout. This part is an accessory rather than a primary enclosure unit.

Part Context

This component belongs to the Hoffman Enclosures product line, specifically categorized under rack accessories and suspension systems. It serves as a critical interface piece within the Syspend 180-MAX ecosystem, allowing for secure attachment of enclosures to overhead structures. The manufacturer, Hoffman Enclosures Inc., specializes in industrial enclosure solutions and related mounting hardware.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
