S25FL032P0XBHIS30

Memory IC Overview

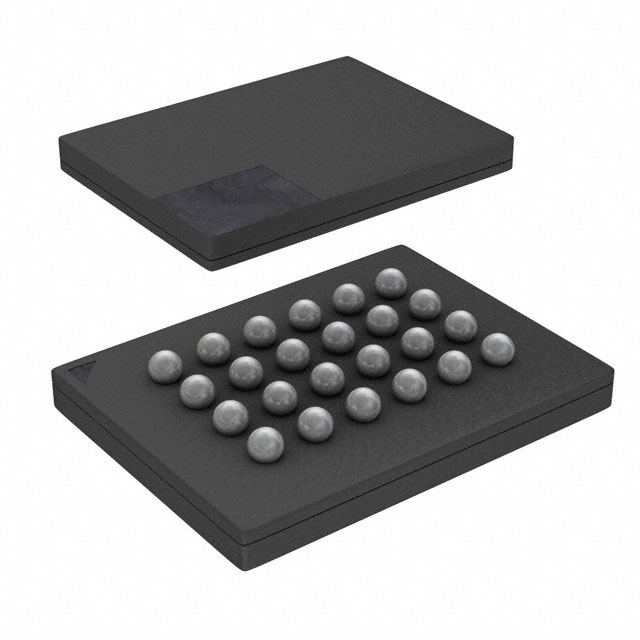

The S25FL032P0XBHIS30 is a 32-Mbit (4 Mbyte) SPI Flash memory device manufactured by Cypress Semiconductor Corp. It operates on a single 3.0 V power supply with a voltage range of 2.7 V to 3.6 V for both read and write operations. The device utilizes 0.09 µm MirrorBit® process technology and supports Serial, Dual I/O, and Quad I/O high-performance read modes with clock rates up to 104 MHz. It features uniform 64-KB sectors and parameter sub-sectors, offering 100,000 cycle endurance and 20-year data retention. The component is housed in a 24-ball BGA package measuring 6 x 8 mm.

Memory IC Feature Summary

• Supports Dual and Quad I/O high-performance read modes for increased data transfer rates
• Includes One-Time Programmable (OTP) area for secure identification
• Provides hardware and software memory protection via status register bits
• Compatible with standard SPI modes 0 and 3

Memory IC Applications

• In-system programming for microcontrollers
• Code storage for embedded systems
• Data storage for consumer electronics
• Industrial control applications

Memory IC Procurement Notes

Verify the specific ordering suffix to confirm package type, temperature range, and packing method. Confirm that the design accepts retired components as this family is not recommended for new designs. Check for valid automotive or industrial grade requirements against the datasheet's AEC-Q100 qualifications if applicable.

Memory IC Selection Notes

Select this part for legacy designs requiring 32-Mbit capacity with Quad I/O support. Ensure the host system supports the required SPI clock speeds and command sets. Consider migration to the S25FL064L family for new designs due to retirement status. Verify pin compatibility if replacing older S25FL032A devices.

Memory IC Part Context

This component belongs to the S25FL-P family of 3.0 V SPI Flash memories. It is backward compatible with the S25FL032A device. The manufacturer has designated this product family as retired, recommending the S25FL-L family for future implementations. It shares architectural similarities with other Cypress SPI flash devices but offers specific speed and packaging options.

Memory IC Replacement Considerations

The S25FL064L is the factory-recommended migration path for new designs. For direct replacement in existing layouts, verify pinout compatibility with other S25FL032 variants. No other specific substitute part numbers are confirmed in the provided documentation.
