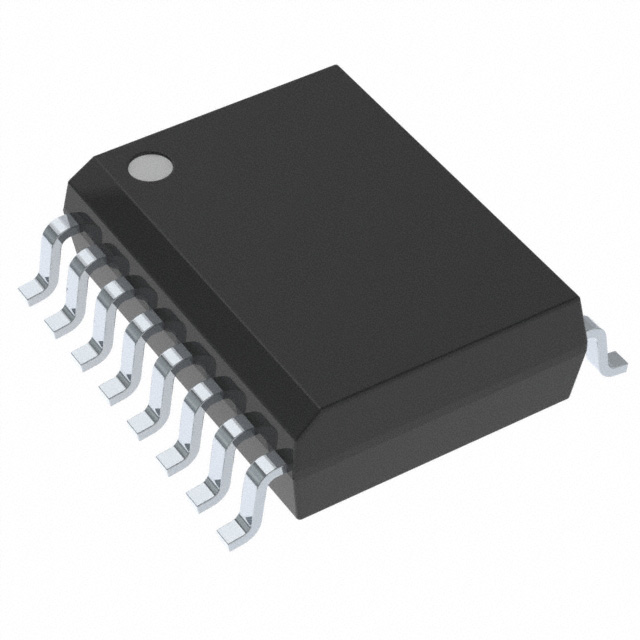

S25FL128P0XMFI001

Description：IC FLASH 128MBIT SPI 16SOIC
Series：FL-P
Mfr：Cypress Semiconductor Corp
Package：Tube

SKU:aad5e3cc8a3f Category: Memory IC Brand: Cypress Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S25FL128P0XMFI001 is listed in the Memory IC range at ChipApex. The manufacturer field lists Cypress Semiconductor Corp. Its product description is IC FLASH 128MBIT SPI 16SOIC. Review the specifications below when checking this part for your BOM.

Memory IC specifications for S25FL128P0XMFI001

Description：IC FLASH 128MBIT SPI 16SOIC
Series：FL-P
Mfr：Cypress Semiconductor Corp
Package：Tube
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：128Mbit
Memory Organization：16M x 8
Memory Interface：SPI
Clock Frequency：104 MHz
Write Cycle Time - Word, Page：3ms
Voltage - Supply：2.7V ~ 3.6V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：16-SOIC (0.295", 7.50mm Width)
Supplier Device Package：16-SOIC
Access Time：-
Grade：-
Qualification：-

Memory IC datasheet and documents for S25FL128P0XMFI001

S25FL128P0XMFI001

Memory IC Overview

The S25FL128P0XMFI001 is a 128 Mbit NOR flash memory device manufactured by Infineon Technologies under the Cypress Semiconductor brand. It operates on a single 3.0 V power supply with a range of 2.7 V to 3.6 V. The device features a 104 MHz SPI interface and supports x8 parallel programming mode in its 16-pin SO package. Memory organization consists of 16 M x 8 bits, utilizing uniform 256 KB sectors. It includes hardware protection via WP#/ACC and status register block protect bits.

Memory IC Feature Summary

Supports accelerated programming operations through the WP#/ACC pin for increased manufacturing throughput
Provides flexible memory protection using software-configurable block protect bits and hardware write protection modes
Enables high-speed serial data transfer via SPI bus compatible with standard microcontroller interfaces

Memory IC Applications

In-system programming for firmware storage
Code execution from flash (XIP) applications
Industrial control system data logging

Memory IC Procurement Notes

Verify component authenticity against official Infineon/Cypress documentation. Confirm the specific suffix indicates the 16-pin SO package and industrial temperature range. Check for obsolescence status as this model is superseded by newer series. Ensure ESD handling protocols are followed during procurement and assembly.

Memory IC Selection Notes

Select this part for designs requiring 128 Mbit capacity with uniform sector architecture. Verify compatibility with 3.0 V logic levels and SPI clock requirements. Consider the 16-pin SO package constraints if space is limited. Evaluate the need for parallel mode support if factory programming speed is critical.

Memory IC Part Context

This component belongs to the S25FL-P family of 3.0 V SPI Flash memories. It utilizes 0.09 µm MirrorBit process technology. The device is designed for backward compatibility with earlier SPI flash standards while offering enhanced performance characteristics and reliability metrics suitable for demanding electronic environments.
