S25FL128SDPMFV003

Memory IC Overview

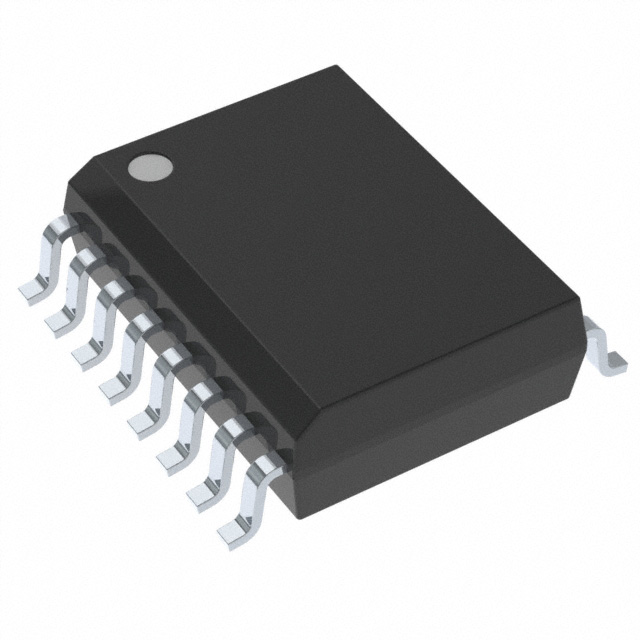

The S25FL128SDPMFV003 is a 128 Mbit NOR flash memory device utilizing 65-nm MirrorBit technology and Eclipse architecture. It features Quad SPI interface support with maximum clock frequencies up to 133 MHz, operating within a voltage range of 2.7 V to 3.6 V. The device offers 16 M x 8 organization, synchronous timing, and supports Execute-in-Place (XiP). It is housed in a 16-pin SOIC package and operates between -40°C and +105°C.

Memory IC Feature Summary

• Supports Quad SPI multi-I/O operations for high-speed data transfer
• Enables Execute-in-Place (XiP) functionality for direct code execution
• Utilizes Eclipse architecture with page programming buffer for efficient erasing

Memory IC Applications

• Embedded systems requiring non-volatile code storage
• Industrial control applications needing wide temperature operation
• Consumer electronics with space-constrained designs

Memory IC Procurement Notes

Verify the specific suffix 'PM' indicates Quad SPI capability rather than standard SPI when sourcing. Confirm RoHS compliance status through official Infineon documentation prior to integration. Ensure ESD protection measures are implemented during handling due to moisture sensitivity classification. Cross-reference pinout compatibility with existing PCB layouts before finalizing procurement orders.

Memory IC Selection Notes

Select this component when Quad SPI bandwidth exceeds standard SPI requirements. The 128 Mbit capacity suits moderate firmware storage needs. Verify that the host controller supports the required command set for Quad mode activation. Consider the 16 SOIC package constraints against available board real estate and thermal dissipation capabilities.

Memory IC Part Context

This part belongs to the S25FL128S series of NOR flash memories from Infineon Technologies. The series leverages 65-nm MirrorBit technology for density and reliability. It represents an evolution in SPI flash devices by integrating advanced architectures for improved performance over previous generations.

Memory IC Replacement Considerations

Check S25FL128SDSMFV003 for standard SPI variants if Quad mode is unnecessary. Verify S25FL128SAGMFV003 for alternative speed grades within the same package family. Ensure electrical parameters match exactly before substituting.
