S25FL164K0XNFV011 is listed in the Memory IC range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC FLASH 64MBIT SPI/QUAD 8WSON. Review the specifications below when checking this part for your BOM.
Memory IC specifications for S25FL164K0XNFV011
- Description：IC FLASH 64MBIT SPI/QUAD 8WSON
- Series：FL1-K
- Mfr：Infineon Technologies
- Package：Tube
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR
- Memory Size：64Mbit
- Memory Organization：8M x 8
- Memory Interface：SPI - Quad I/O
- Clock Frequency：108 MHz
- Write Cycle Time - Word, Page：3ms
- Voltage - Supply：2.7V ~ 3.6V
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount

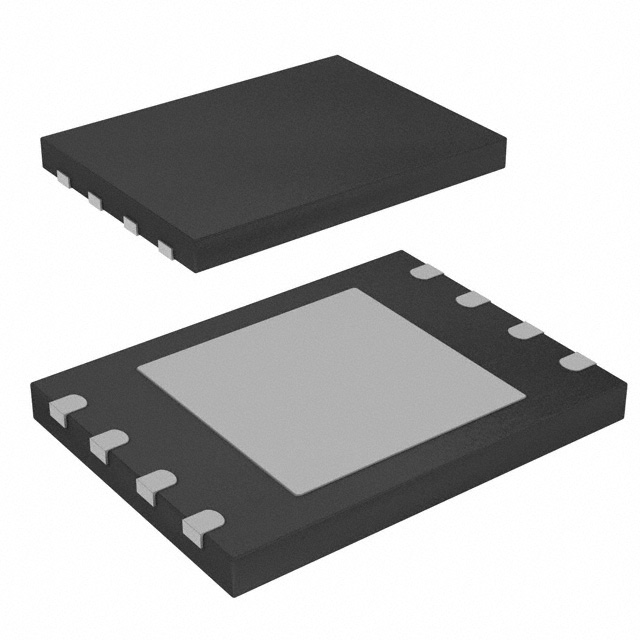

- Package / Case：8-WDFN Exposed Pad
- Supplier Device Package：8-WSON (5x6)
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for S25FL164K0XNFV011
Memory IC Overview
The Infineon S25FL164K0XNFV011 is a 64-Mbit (8 Mbyte) SPI NOR flash memory device from the retired S25FL1-K family. It operates on a single 2.7 V to 3.6 V supply and supports clock rates up to 108 MHz for Fast, Dual, and Quad Read commands. The device features an 8-lead WSON package with dimensions of 5 mm x 6 mm. It provides efficient Execute-In-Place (XIP) capabilities and includes security registers with OTP protection.
Memory IC Feature Summary
- Supports Single, Dual, and Quad I/O serial protocols via SPI Multi-I/O interface
- Includes pointer-based block protection and three 256-byte security registers with OTP protection
- Enables code execution directly from flash memory through continuous and wrapped read modes
Memory IC Applications
- Code shadowing to RAM
- Execute-In-Place (XIP) applications
- Storage of reprogrammable data in space-constrained systems
Memory IC Procurement Notes
This component belongs to the S25FL1-K family, which has been officially retired by the manufacturer. It is not recommended for new designs. Verify current availability status as stock may be limited or discontinued. Consult official migration guides for replacement options before procurement.
Memory IC Selection Notes
Select this part only for maintenance or legacy system upgrades where footprint compatibility with prior FL-K and FL-P families is required. For new projects, consider the S25FL064L family as the factory-recommended migration path due to the retirement of the S25FL1-K series.
Memory IC Part Context
The S25FL164K0XNFV011 is part of the S25FL1-K series, manufactured using 90 nm floating gate technology. This family was designed to offer high performance and flexibility for systems with limited signal connections. The specific model utilizes an 8-contact WSON package suitable for surface-mount assembly.
Memory IC Replacement Considerations
The S25FL064L family is the factory-recommended migration path for the S25FL1-K series. Engineers should review the S25FL-L Family datasheets for specifications and ordering information regarding compatible replacements.
