S25HS02GTDPBHV053

Memory IC Overview

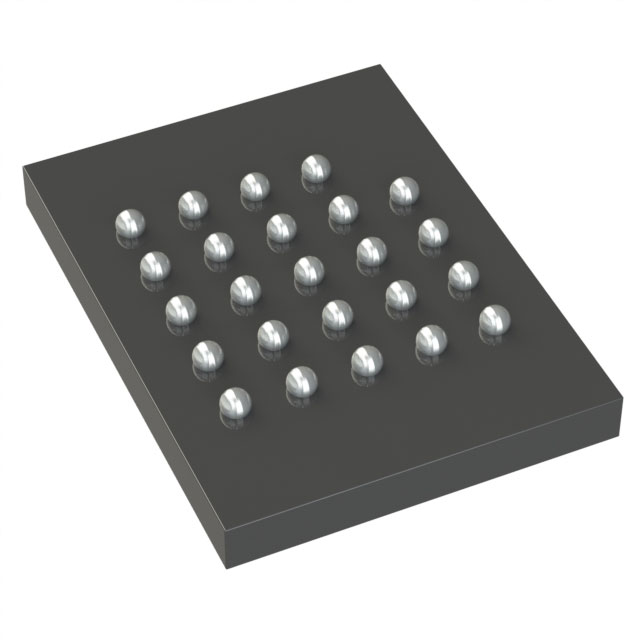

The S25HS02GTDPBHV053 is a 2 Gbit (256M x 8) NOR flash memory device from Infineon Technologies' SEMPER HS-T family. It operates at a supply voltage of 1.7 V to 2 V and supports Quad SPI interfaces with clock frequencies up to 133 MHz in DDR mode. The component is housed in a 24-FBGA (8x8 mm) package, suitable for surface mount applications. It features an industrial operating temperature range of -40°C to +105°C and includes integrated safety mechanisms compliant with ISO 26262 ASIL-D standards.

Memory IC Feature Summary

• Supports high-speed Quad SPI interface with data rates up to 133 MHz
• Integrated functional safety features certified to ISO 26262 ASIL-D
• Provides robust data retention and endurance characteristics for industrial environments

Memory IC Applications

• Automotive domain controllers for ADAS and autonomous driving systems
• Motor control units requiring high reliability
• Industrial embedded systems needing secure boot capabilities

Memory IC Procurement Notes

Verify the specific suffix 'V053' against official Infineon documentation to confirm tape and reel packaging specifications and moisture sensitivity level. Ensure compatibility with existing board designs regarding the 24-FBGA footprint and thermal requirements. Cross-reference the orderable part number with current product qualification reports to confirm availability status and lead times before finalizing procurement plans.

Memory IC Selection Notes

Select this component when a 2 Gbit density is required alongside strict functional safety compliance for automotive or industrial sectors. The 1.8 V operation makes it suitable for low-voltage logic interfaces. Consider the FBGA package size constraints and the need for Quad SPI support versus simpler Single I/O configurations. Evaluate the ASIL-D certification benefits if system-level safety goals demand such verification.

Memory IC Part Context

This part belongs to the SEMPER HS-T series, designed for high-performance and safety-critical applications. It complements other densities in the SEMPER portfolio, offering scalable solutions for complex electronic architectures. The HS-T designation indicates its 1.8 V operation and industrial temperature grade, distinguishing it from the HL-T (3.0 V) variants.

Memory IC Replacement Considerations

S25HS02GTDPBHB053

Memory IC FAQ

What is the maximum clock frequency supported by the S25HS02GTDPBHV053?

The device supports a maximum clock frequency of 133 MHz in Dual Data Rate (DDR) mode.

Is the S25HS02GTDPBHV053 qualified for automotive applications?

Yes, it is AEC-Q100 qualified and certified to ISO 26262 ASIL-D for functional safety.
