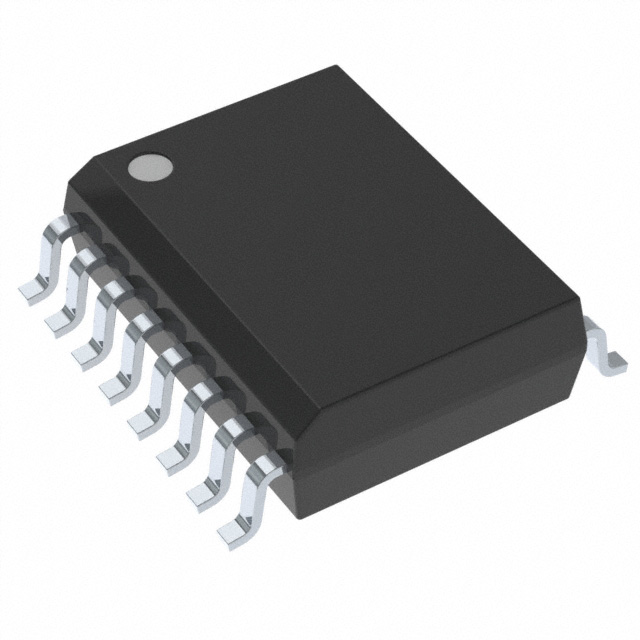

S25HS512TDPMHI010 is listed in the Memory IC range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC FLASH 512MBIT SPI/QUAD 16SOIC. Review the specifications below when checking this part for your BOM.
Memory IC specifications for S25HS512TDPMHI010
- Description：IC FLASH 512MBIT SPI/QUAD 16SOIC
- Series：HS-T
- Mfr：Infineon Technologies
- Package：Tray
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR
- Memory Size：512Mbit
- Memory Organization：64M x 8
- Memory Interface：SPI - Quad I/O
- Clock Frequency：133 MHz
- Write Cycle Time - Word, Page：-
- Voltage - Supply：1.7V ~ 2V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package：16-SOIC
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for S25HS512TDPMHI010
Memory IC Overview
The S25HS512TDPMHI010 is a 512 Mbit NOR flash memory device from Infineon Technologies' SEMPER HS-T series. It features a synchronous SPI interface with a maximum clock frequency of 133 MHz and an organization of 64 M x 8 bits. The component operates within a supply voltage range of 1.7 V to 2 V, drawing a maximum active read current of 53 mA. It is housed in a 16-SOIC package and supports surface mount installation. The device is rated for industrial temperatures, functioning between -40°C and +85°C.
Memory IC Feature Summary
- Supports high-speed synchronous serial peripheral interface operations
- Designed for industrial-grade reliability and extended temperature stability
- Provides non-volatile data storage with sector-based architecture
Memory IC Applications
- Industrial control systems requiring robust code storage
- Automotive electronics operating under strict environmental conditions
- Embedded systems needing reliable firmware execution
Memory IC Procurement Notes
Verify the specific suffix HI010 against official datasheets to confirm the exact package variant and temperature grade. Ensure compatibility with 1.8V logic levels and check moisture sensitivity handling requirements during assembly. Confirm lead times as production cycles may vary based on factory schedules.
Memory IC Selection Notes
Select this part when a 512 Mbit capacity is required with synchronous SPI timing. Compare against the HL-series if 3.3V operation is needed instead of 1.8V. Consider the SOIC-16 footprint constraints and ensure the design accommodates the specified 53 mA peak read current.
Memory IC Part Context
This component belongs to the SEMPER HS-T family, which targets industrial applications. It shares architectural similarities with other S25HS512T variants but differs in package type and voltage specifications. The HS-T designation indicates industrial quality grading suitable for demanding environments.
Memory IC Replacement Considerations
Direct substitutes include other S25HS512T variants with compatible packages. Verify pinout compatibility before swapping. Alternative families like S25HL require voltage level adjustments.
