S28HS02GTFPBHM053 is listed in the Memory IC range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC FLASH 2GBIT SPI/OCTAL 24FBGA. Review the specifications below when checking this part for your BOM.
Memory IC specifications for S28HS02GTFPBHM053
- Description：IC FLASH 2GBIT SPI/OCTAL 24FBGA
- Series：SEMPER™
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR)
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR (SLC)
- Memory Size：2Gbit
- Memory Organization：256M x 8
- Memory Interface：SPI - Octal I/O
- Clock Frequency：166 MHz
- Write Cycle Time - Word, Page：-
- Voltage - Supply：1.7V ~ 2V
- Operating Temperature：-40°C ~ 125°C (TA)
- Mounting Type：Surface Mount

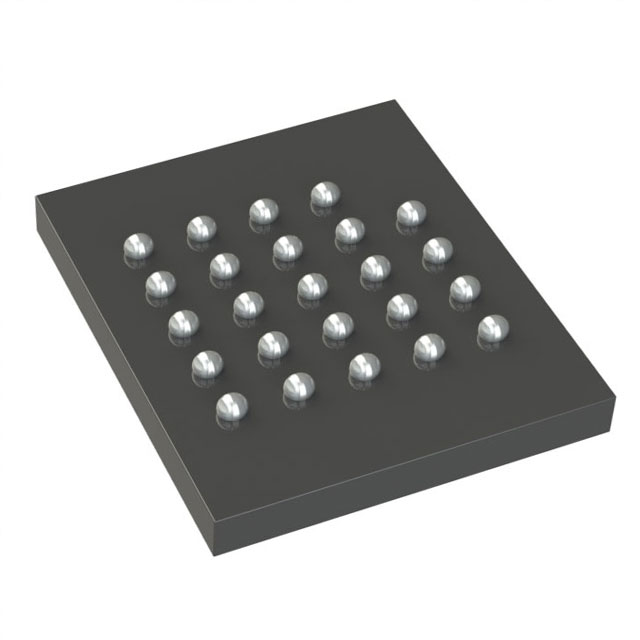

- Package / Case：24-VBGA
- Supplier Device Package：24-FBGA (8x8)
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for S28HS02GTFPBHM053
Memory IC Overview
The S28HS02GTFPBHM053 is a 2 Gb SEMPER™ Flash device utilizing Infineon 45-nm MIRRORBIT™ technology. It features an Octal interface compliant with JEDEC xSPI, supporting SDR up to 166 MBps and DDR up to 332 MBps. The device operates at 1.7 V to 2.0 V and is housed in a 24-ball BGA package (8x8 mm). It includes ISO 26262 ASIL B compliance, Endurance Flex architecture, and built-in ECC for data integrity.
Memory IC Feature Summary
- Supports Octal peripheral interface (OPI) and legacy SPI modes with data strobe synchronization.
- Features Endurance Flex architecture allowing customizable high-endurance or long-retention partitions.
- Includes SafeBoot diagnostics and sector erase status indicators for power loss protection.
- Provides hardware reset via dedicated RESET# pin or CS# signaling.
Memory IC Applications
- Automotive telematics control units
- Industrial automation systems
- Consumer electronics requiring high-speed boot code storage
Memory IC Procurement Notes
Verify the specific ordering suffixes against the official datasheet to confirm voltage range, temperature grade, and addressing mode. Ensure compatibility with host system interfaces regarding clock speeds and protocol support before integration.
Memory IC Selection Notes
Select this component for applications requiring functional safety certification and high-speed data access. Consider the 1.8V operating requirement and BGA package constraints during PCB layout design.
Memory IC Part Context
This part belongs to the SEMPER™ Flash family, designed for automotive and industrial markets. It integrates multiple dies within a single package to achieve higher density while maintaining small footprint dimensions suitable for space-constrained designs.
Memory IC Replacement Considerations
Check for compatible parts within the S28HS series with matching voltage and temperature specifications. Verify if alternative densities or package types meet the system requirements without redesigning the board.
Memory IC FAQ
What is the maximum read speed supported by this device?
The device supports Octal DDR read speeds up to 332 MBps at a 166 MHz clock frequency.
Does this flash memory support functional safety standards?
Yes, it is ISO 26262 ASIL B compliant and ASIL D ready, featuring SafeBoot and ECC capabilities.
