S29AL008J70TFA010

Memory IC Overview

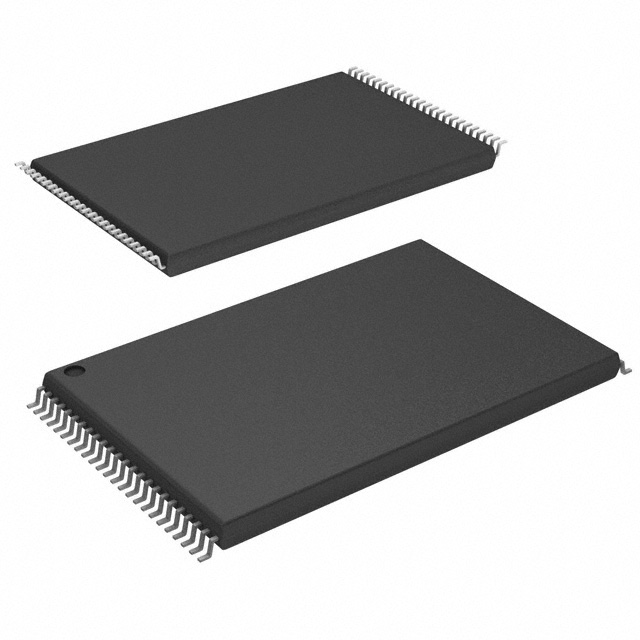

The S29AL008J70TFA010 is an 8 Mbit (1M x 8/512K x 16) parallel NOR flash memory manufactured by Infineon Technologies. It operates on a single 3.0 V power supply with a voltage range of 2.7 V to 3.6 V. The device features a 70 ns access time and supports both top and bottom boot sector configurations. It is housed in a 48-pin TSOP package and is qualified for the automotive AEC-Q100 Grade 3 standard, ensuring reliability within an operating temperature range of -40°C to +85°C.

Memory IC Feature Summary

• Supports flexible sector architecture with configurable top or bottom boot blocks
• Includes a Secured Silicon Sector region for permanent identification via Electronic Serial Number
• Features hardware sector protection mechanisms to prevent unauthorized program or erase operations
• Complies with JEDEC standards for pinout and software compatibility

Memory IC Applications

• Automotive embedded systems requiring AEC-Q100 Grade 3 qualification
• Industrial control applications needing reliable non-volatile code storage
• Battery-powered devices utilizing single 3.0 V supply operation
• Systems requiring secure firmware storage with secured silicon sectors

Memory IC Procurement Notes

Verify that the specific ordering suffix matches the required boot block configuration and temperature grade. Confirm package type availability as manufacturing processes may evolve. Check current lifecycle status through official Infineon channels to ensure long-term supply continuity for production designs.

Memory IC Selection Notes

Select this component when a 70 ns access speed is sufficient for the target microprocessor interface. Ensure the design accommodates the 48-pin TSOP footprint. Verify that the system voltage remains within the 2.7 V to 3.6 V range to guarantee proper read and write operations without external high-voltage generators.

Memory IC Part Context

This part belongs to the S29AL008J family of 8 Mbit parallel NOR flash memories. It utilizes 110 nm process technology and is compatible with the broader S29AL series command sets. The device serves as a drop-in replacement for previous generations like the S29AL008D, maintaining electrical and pinout compatibility while offering enhanced performance and security features.

Memory IC Replacement Considerations

S29AL008J70TFN010: Extended temperature version (-40°C to +125°C). S29AL008J70BFI010: Fine-pitch BGA package alternative.
