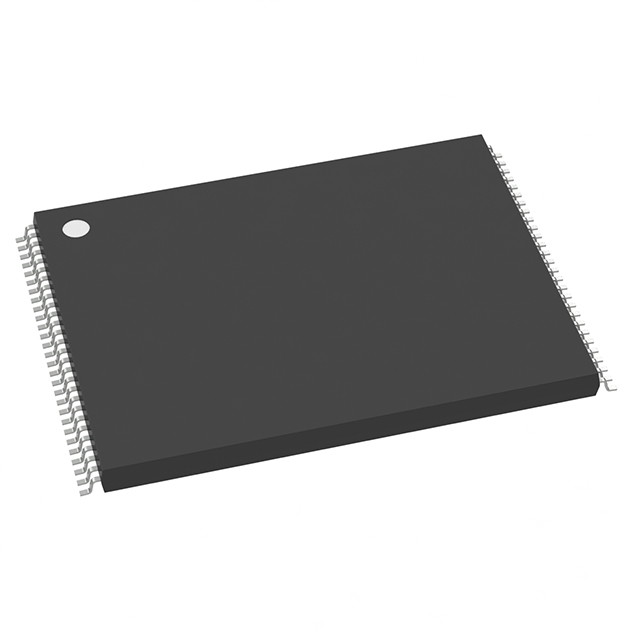

S29GL128P10TFI010

Description：IC FLASH 128MBIT PARALLEL 56TSOP
Series：GL-P
Mfr：Cypress Semiconductor Corp
Package：Bulk

SKU:3ddc6f23defd Category: Memory IC Brand: Cypress Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S29GL128P10TFI010 is listed in the Memory IC range at ChipApex. The manufacturer field lists Cypress Semiconductor Corp. Its product description is IC FLASH 128MBIT PARALLEL 56TSOP. Review the specifications below when checking this part for your BOM.

Memory IC specifications for S29GL128P10TFI010

Description：IC FLASH 128MBIT PARALLEL 56TSOP
Series：GL-P
Mfr：Cypress Semiconductor Corp
Package：Bulk
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：128Mbit
Memory Organization：16M x 8
Memory Interface：Parallel
Clock Frequency：-
Write Cycle Time - Word, Page：100ns
Voltage - Supply：2.7V ~ 3.6V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：56-TFSOP (0.724", 18.40mm Width)
Supplier Device Package：56-TSOP
Access Time：100 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for S29GL128P10TFI010

S29GL128P10TFI010

Memory IC Overview

The S29GL128P10TFI010 is a 128 Mbit NOR Flash memory device manufactured using 90 nm MirrorBit process technology. It features a parallel interface with an access time of 100 ns and operates on a single 3V supply (2.7V to 3.6V). The device supports VersatileIO control, allowing I/O voltage levels from 1.65V to VCC. It is housed in a 56-pin TSOP package and includes a 32-word write buffer for efficient programming.

Memory IC Feature Summary

Features 90 nm MirrorBit process technology for high density and performance.
Supports VersatileIO control for flexible I/O voltage compatibility.
Includes a 32-word write buffer to accelerate multiple-word programming operations.
Provides advanced sector protection methods including persistent and password-based locking.

Memory IC Applications

Embedded systems requiring non-volatile code storage
Industrial control applications
Automotive electronics

Memory IC Procurement Notes

Verify the specific ordering suffix 'TFI010' against the manufacturer's current datasheet to confirm package type, speed grade, and temperature range. Ensure the component meets RoHS compliance requirements for your assembly process. Check for any discontinuation notices or lifecycle status updates from Infineon or Cypress Semiconductor before finalizing procurement plans.

Memory IC Selection Notes

Select this component when a 128 Mbit capacity with 100 ns random access time is required. It is suitable for designs needing VersatileIO support for mixed-voltage interfaces. Consider the 56-pin TSOP package constraints and industrial temperature range (-40°C to +85°C) during PCB layout and thermal design.

Memory IC Part Context

This part belongs to the S29GL-P family of 3.0 Volt Page Mode Flash memories. The family includes densities ranging from 128 Mbit to 1 Gbit. All devices share the same 90 nm MirrorBit architecture and command set, facilitating potential migration within the product line while maintaining software compatibility.
