S29GL256S11DHIV10

Memory IC Overview

The S29GL256S11DHIV10 is a 256 Mbit (32 MB) parallel NOR flash memory from the GL-S family, utilizing 65 nm MIRRORBIT Eclipse technology. It features a 16-bit data bus and operates on a single 2.7 V to 3.6 V supply. The device provides a random access time of 110 ns and a page access time of 15 ns. It includes a 512-byte write buffer for efficient programming and supports asynchronous read operations with Versatile I/O capabilities.

Memory IC Feature Summary

• Supports Execute-In-Place (XIP) with fast random access and high-density data storage capabilities.
• Integrates an embedded algorithm controller for autonomous program and erase operations.
• Features hardware-based automatic error correction for single-bit errors during initial access.
• Provides advanced sector protection with both volatile and non-volatile locking methods.

Memory IC Applications

• Embedded applications requiring code execution directly from flash memory
• Data storage systems needing high density and fast effective programming times
• Industrial control systems operating within extended temperature ranges

Memory IC Procurement Notes

Verify the specific suffix 'V10' against official Infineon documentation to confirm package type and temperature grade. Ensure compatibility with host system voltage levels, particularly regarding the Versatile I/O range. Confirm that the 110 ns access time meets the timing requirements of the target application interface.

Memory IC Selection Notes

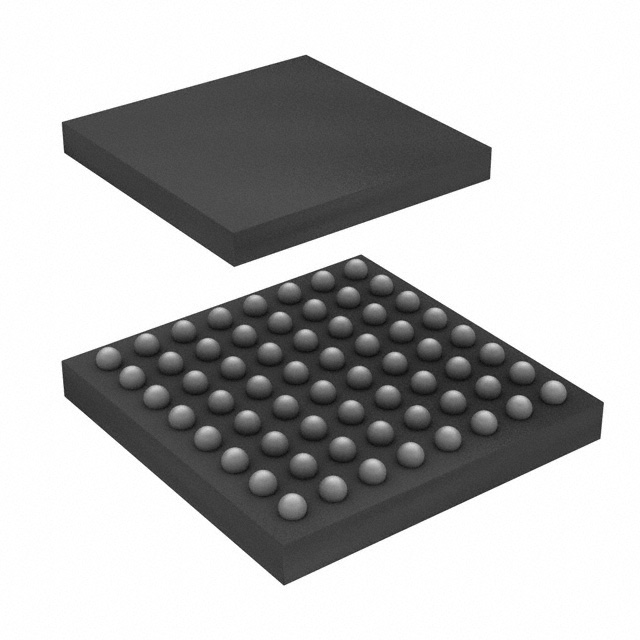

Select this component when a 256 Mbit capacity with a 16-bit interface is required. The 110 ns speed grade suits applications where moderate access latency is acceptable. Consider the FBGA-64 packaging if space constraints favor surface-mount BGA solutions over TSOP options.

Memory IC Part Context

This part belongs to the S29GL256S series within the broader GL-S MIRRORBIT family. It shares architectural similarities with other densities in the line, such as the S29GL128S and S29GL512S, but offers specific capacity and pinout configurations tailored for 32 MByte storage needs.

Memory IC Replacement Considerations

Check for alternative speed grades like S29GL256S10DHI10 (100 ns) or different packages such as TSOP-56 variants. Verify if automotive-grade versions are required for specific environmental certifications.
