S2A33025-100.000-P-X-M

Oscillators Overview

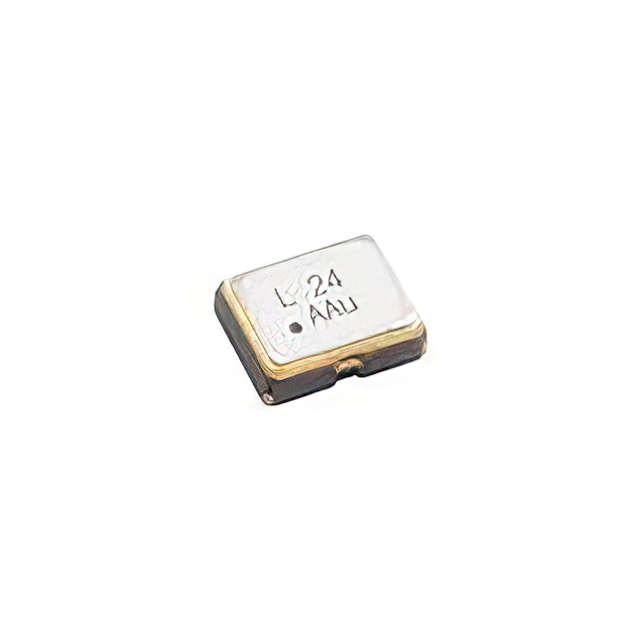

The S2A33025-100.000-P-X-M is a 100 MHz XO (Standard) LVPECL Oscillator manufactured by Aker Technology Corp. It operates with a nominal supply voltage of 3.3V and features an Enable/Disable control function. The component utilizes a 6-SMD, No Lead surface mount package with dimensions of 2.50mm x 2.00mm and a maximum seated height of 1.10mm. It is RoHS compliant and lead-free.

Oscillators Feature Summary

• LVPECL output interface for high-speed digital applications
• Integrated enable/disable functionality for power management
• Compact 6-SMD no-lead surface mount package design

Oscillators Applications

• High-speed data communication systems
• Networking equipment clock generation
• Telecommunications infrastructure timing

Oscillators Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against the official datasheet before procurement. Confirm that the 3.3V supply voltage aligns with the target circuit design. Ensure the 6-SMD footprint matches the PCB layout specifications to guarantee proper mechanical fit and electrical connectivity during assembly.

Oscillators Selection Notes

Select this oscillator when a precise 100 MHz LVPECL signal is required in space-constrained designs. The enable/disable feature allows for dynamic power control within the system. Consider the small form factor suitable for dense PCB layouts where standard packages would not fit. Validate thermal performance under operating conditions.

Oscillators Part Context

This part belongs to the S2A series of surface mount oscillators from Aker Technology Corp. The series offers various frequencies and output types, including LVPECL. The S2A33025 variant specifically denotes the 3.3V supply voltage and 2.5x2.0mm package size, providing a standardized solution for modern electronic timing needs.

Oscillators Replacement Considerations

Direct substitutes include other 100 MHz LVPECL oscillators in identical 6-SMD packages from compatible manufacturers. Verify pinout compatibility and electrical specifications such as rise/fall times and duty cycle stability before substitution.
