S2A33025-125.000-P-X-M

Oscillators Overview

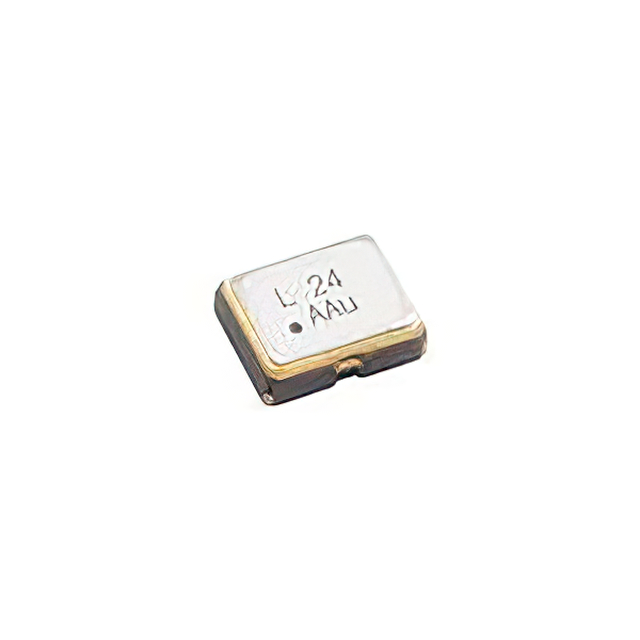

The S2A33025-125.000-P-X-M is a standard crystal oscillator (XO) manufactured by Aker Technology Corp, operating at a fixed frequency of 125 MHz. It utilizes LVPECL output logic and functions with a 3.3V supply voltage. The device features an enable/disable control function for power management. It is housed in a compact 6-SMD, No Lead surface-mount package with dimensions of 2.50mm x 2.00mm and a maximum seated height of 1.10mm.

Oscillators Feature Summary

• LVPECL output interface for high-speed digital applications
• Integrated enable/disable control functionality
• Surface-mount design optimized for space-constrained PCB layouts

Oscillators Applications

• High-speed data communication systems
• Network infrastructure equipment
• Telecommunications base stations

Oscillators Procurement Notes

Verify the specific datasheet from Aker Technology Corp to confirm exact electrical parameters, as specifications may vary. Ensure compatibility with 3.3V logic levels and LVPECL requirements. Confirm RoHS compliance status if required by project standards. Validate package dimensions against PCB footprint constraints before procurement.

Oscillators Selection Notes

Select this component when a stable 125 MHz clock source with LVPECL outputs is required. Consider the 6-SMD package size for assembly compatibility. Evaluate the enable/disable feature needs for system power management. Compare against alternative frequencies if timing requirements differ.

Oscillators Part Context

This part belongs to the S2A33025 series of oscillators from Aker Technology Corp. Similar models include variants with different frequencies such as 100 MHz and 25 MHz, sharing the same package and electrical characteristics. The series provides standardized solutions for clock generation in electronic circuits.

Oscillators Replacement Considerations

Direct substitutes include other 125 MHz LVPECL oscillators in 6-SMD packages from compatible manufacturers. Verify pinout compatibility and electrical specifications before substitution. Cross-reference with Aker Technology's official replacement guide if available.
