S2A33025-155.520-P-X-M

Oscillators Overview

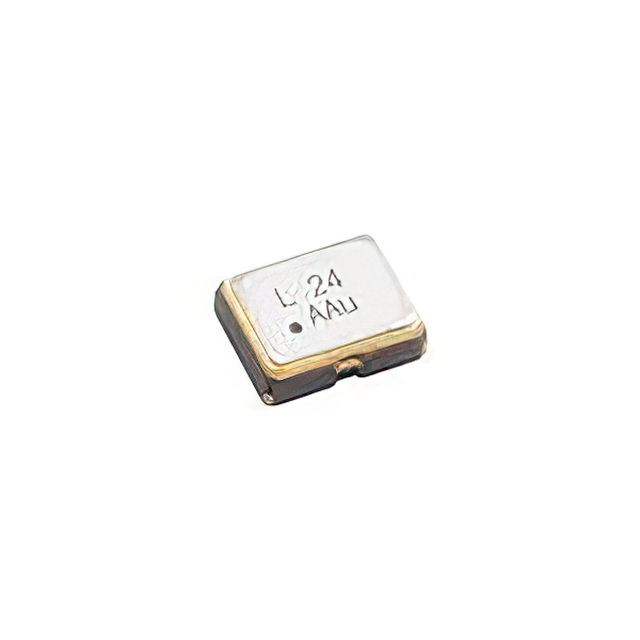

The S2A33025-155.520-P-X-M is a standard LVPECL crystal oscillator manufactured by Aker Technology Corp, operating at a nominal frequency of 155.52 MHz. It utilizes a 6-SMD, no-lead surface mount package with dimensions of 2.50mm x 2.00mm and a maximum seated height of 1.10mm. The device supports a supply voltage range of 3.3V and includes an enable/disable function for power management.

Oscillators Feature Summary

• Features Low Voltage Positive Emitter Coupled Logic (LVPECL) output interface for high-speed digital applications.
• Incorporates an enable/disable control pin to manage power consumption during inactive periods.
• Constructed in a compact 6-SMD no-lead surface mount package suitable for space-constrained PCB layouts.

Oscillators Applications

• High-speed serial communication interfaces requiring precise clock synchronization.
• Data acquisition systems utilizing high-frequency sampling rates.
• Network infrastructure equipment demanding stable timing signals.

Oscillators Procurement Notes

Verify the specific package outline drawing against your PCB footprint design, particularly the 2.50mm x 2.00mm dimensions and 1.10mm max height. Confirm that the LVPECL output voltage levels are compatible with your receiver inputs. Ensure the enable/disable logic polarity matches your system control requirements before finalizing the order.

Oscillators Selection Notes

Select this component when a low-jitter LVPECL signal is required at 155.52 MHz. Consider the 3.3V supply requirement and the need for an active-low or active-high enable signal. Evaluate the thermal performance of the small 6-SMD package under continuous operation conditions.

Oscillators Part Context

This oscillator belongs to the S2A series from Aker Technology Corp, designed for general-purpose frequency control. The series offers various frequencies and output types, with this specific model focusing on high-frequency LVPECL performance in a miniature form factor.

Oscillators Replacement Considerations

Direct substitutes must match the 155.52 MHz frequency, LVPECL output type, 3.3V supply, and 6-SMD 2.5x2.0mm package. Verify pinout compatibility for the enable function and ensure equivalent jitter specifications.
