S2A33025-156.250-P-X-M

Oscillators Overview

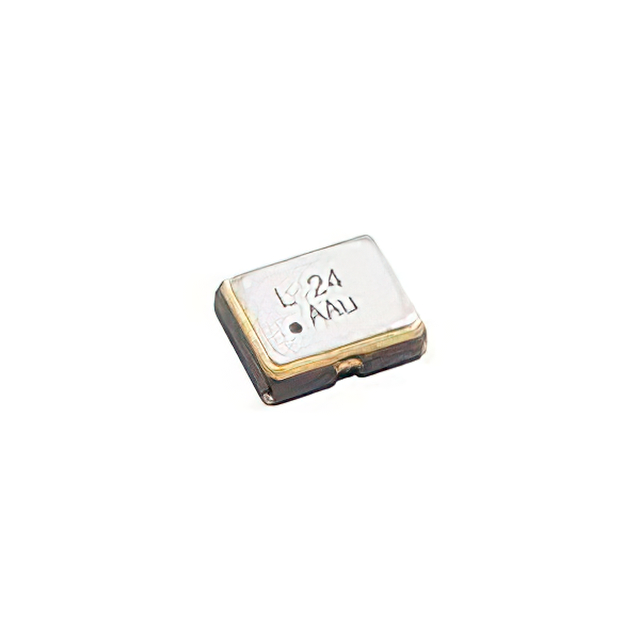

The S2A33025-156.250-P-X-M is a 156.25 MHz standard crystal oscillator (XO) manufactured by Aker Technology Corp. It features an LVPECL output interface and operates at a nominal supply voltage of 3.3V. The device includes an enable/disable control function for power management. It is housed in a compact 6-SMD, No Lead surface-mount package with dimensions of 2.50mm x 2.00mm and a maximum seated height of 1.10mm.

Oscillators Feature Summary

• LVPECL output interface for high-speed digital applications
• Integrated enable/disable control functionality
• Compact 6-SMD no-lead surface mount package design

Oscillators Applications

• High-speed data communication systems
• Network infrastructure equipment
• Telecommunications signal processing

Oscillators Procurement Notes

Verify the specific frequency tolerance and operating temperature range required for your application against the official datasheet specifications. Confirm that the LVPECL output voltage levels are compatible with the receiving logic inputs. Ensure the PCB footprint matches the 2.50mm x 2.00mm package dimensions to guarantee proper soldering and mechanical stability during assembly.

Oscillators Selection Notes

Select this component when a precise 156.25 MHz clock source with LVPECL outputs is required. The integrated enable pin allows for dynamic power control, which is beneficial for battery-operated or thermal-sensitive designs. The small form factor makes it suitable for dense PCB layouts where space is limited compared to larger oscillator packages.

Oscillators Part Context

This part belongs to the S2A series of standard crystal oscillators from Aker Technology Corp. The series offers various frequencies and output types, including LVPECL and HCMOS. The S2A33025 variant specifically denotes the 3.3V supply voltage family and the 6-pin SMD package style, distinguishing it from other voltage or package options within the broader product line.

Oscillators Replacement Considerations

Direct substitutes include other S2A33025 models with different frequencies such as S2A33025-125.000-P-X-M or S2A33025-100.000-P-X-M if frequency adjustment is permissible. Verify pinout compatibility and electrical characteristics before swapping with non-Aker brands.
