S2A33025-25.000-P-X-M

Oscillators Overview

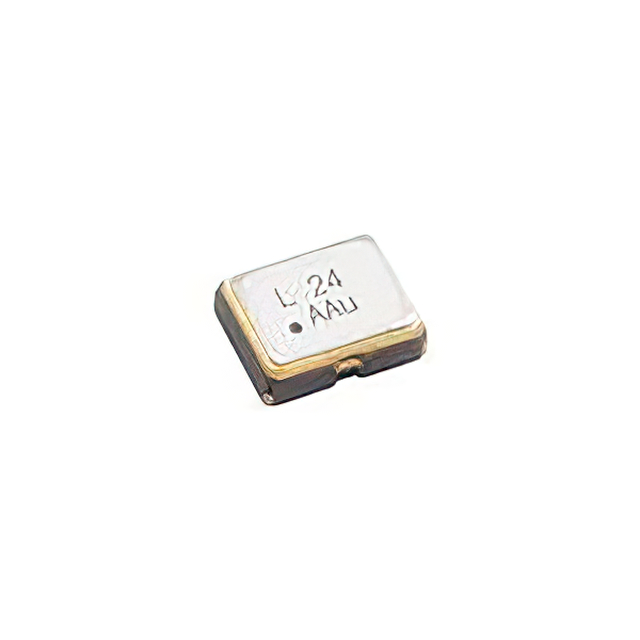

The S2A33025-25.000-P-X-M is a 25 MHz standard crystal oscillator (XO) manufactured by Aker Technology Corp. It operates on a 3.3V supply and features an LVPECL output type with enable/disable functionality. The component utilizes a 6-SMD, no lead surface mount package with dimensions of 2.50mm x 2.00mm and a maximum seated height of 1.10mm. It is RoHS compliant and lead-free.

Oscillators Feature Summary

• Provides stable 25 MHz clock signals via LVPECL output interface
• Integrates enable and disable control capabilities for power management
• Designed for compact PCB layouts using a small 6-SMD no lead package

Oscillators Applications

• High-speed digital signal processing systems
• Telecommunications equipment requiring precise timing
• Network infrastructure components

Oscillators Procurement Notes

Verify the specific datasheet version for electrical characteristics such as frequency stability and phase noise, as these values are not explicitly detailed in the provided summary text. Confirm that the LVPECL output voltage levels match the receiving circuit requirements. Ensure the 3.3V supply voltage aligns with the system design specifications before procurement.

Oscillators Selection Notes

Select this component when a low-profile, surface-mount oscillator with LVPECL outputs is required. The 6-pin SMD form factor suits space-constrained designs. Consider the enable/disable feature if dynamic power control is necessary. Verify compatibility with the target application's operating temperature range and load conditions against the official manufacturer data sheet.

Oscillators Part Context

This part belongs to Aker Technology Corp's line of precision crystal oscillators. The company specializes in frequency control products established since 1990. This specific model represents a standard XO solution designed for modern electronic applications requiring reliable clock generation in a compact footprint.

Oscillators Replacement Considerations

Consult official distributor databases for direct substitutes. Cross-reference pinouts and electrical parameters carefully. No confirmed substitute part numbers are available in the provided source material.
