S2A3310-156.250-L-A-X1-R

Oscillators Overview

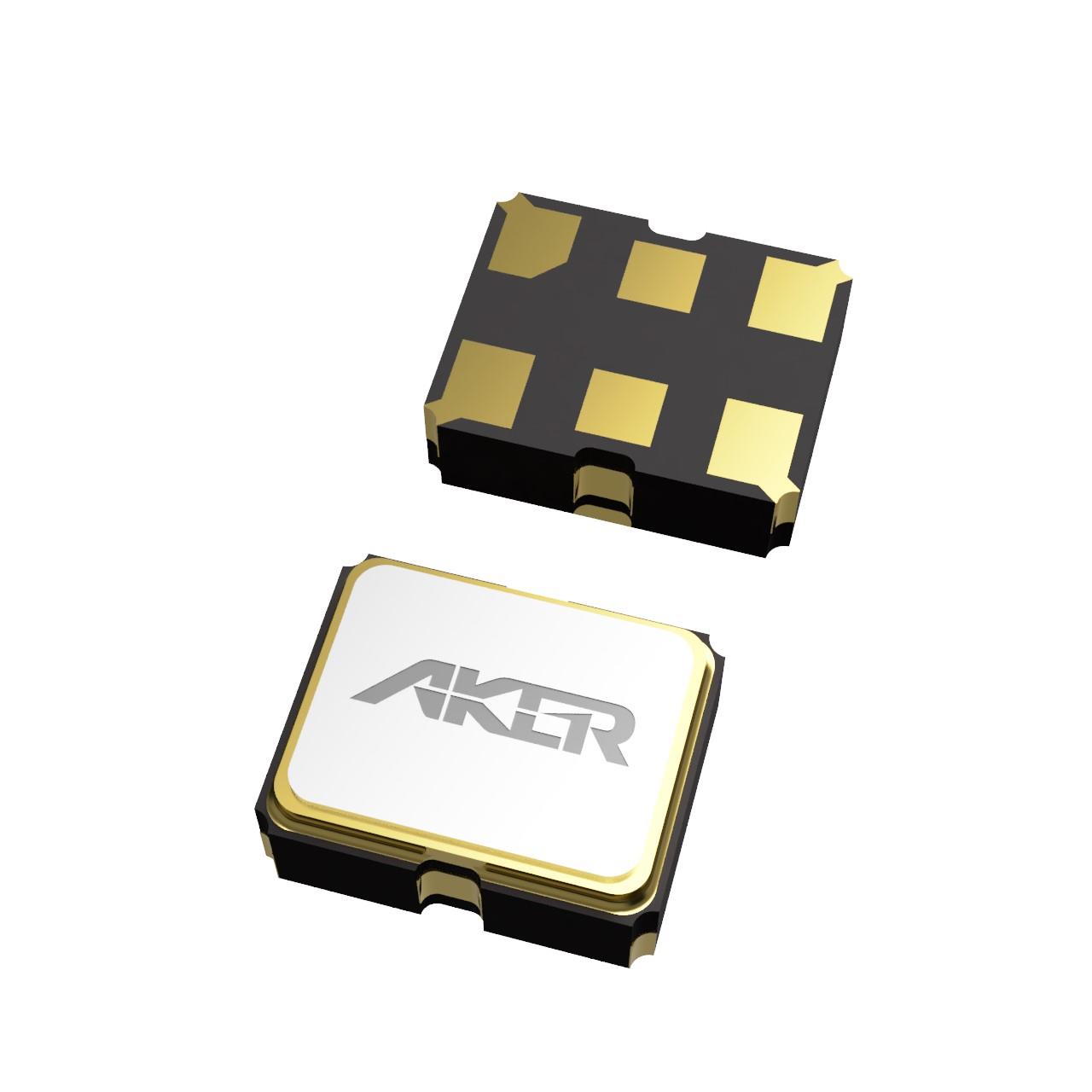

The S2A3310-156.250-L-A-X1-R is a 156.25 MHz crystal oscillator manufactured by Aker Technology Corp. It features LVDS output signaling and operates with a 3.3V supply voltage. The device includes an enable/disable control function for power management. It is housed in a compact 6-SMD, no-lead package suitable for surface-mount assembly. The component supports an extended temperature range of -40°C to +85°C and is supplied in tape and reel packaging.

Oscillators Feature Summary

• LVDS output interface for high-speed signal integrity
• Integrated enable/disable control pin
• Extended industrial temperature range capability
• Automotive-grade AEC-Q200 qualification

Oscillators Applications

• Automotive electronic systems requiring frequency control
• High-speed data transmission interfaces
• Industrial equipment clocking applications

Oscillators Procurement Notes

Verify the specific datasheet version and electrical parameters directly from the manufacturer before procurement. Confirm that the LVDS output type and 3.3V operating voltage align with the target circuit design requirements. Ensure the 6-SMD package dimensions are compatible with the PCB footprint. Check for any specific handling instructions related to the tape and reel packaging format during storage and assembly processes.

Oscillators Selection Notes

Select this component when LVDS signaling is required for noise immunity in high-frequency applications. The integrated enable feature allows for dynamic power management in battery-sensitive or thermal-constrained designs. The AEC-Q200 qualification makes it suitable for automotive environments where reliability under varying temperatures is critical. Ensure the system design accommodates the specific load capacitance requirements associated with LVDS outputs.

Oscillators Part Context

This oscillator belongs to Aker Technology's series of precision frequency control products designed for demanding applications. The company specializes in quartz crystals and oscillators, providing solutions for automotive and industrial sectors. This specific model represents a standard XO variant optimized for digital communication interfaces requiring precise timing references.

Oscillators Replacement Considerations

Direct substitutes must match the 156.25 MHz frequency, LVDS output type, 3.3V supply, and 6-SMD package. Verify compatibility with the enable/disable functionality and AEC-Q200 qualification if used in automotive contexts. Cross-reference pin assignments and thermal characteristics to ensure seamless integration without redesign.
