S2KDF-13

Single Diodes Overview

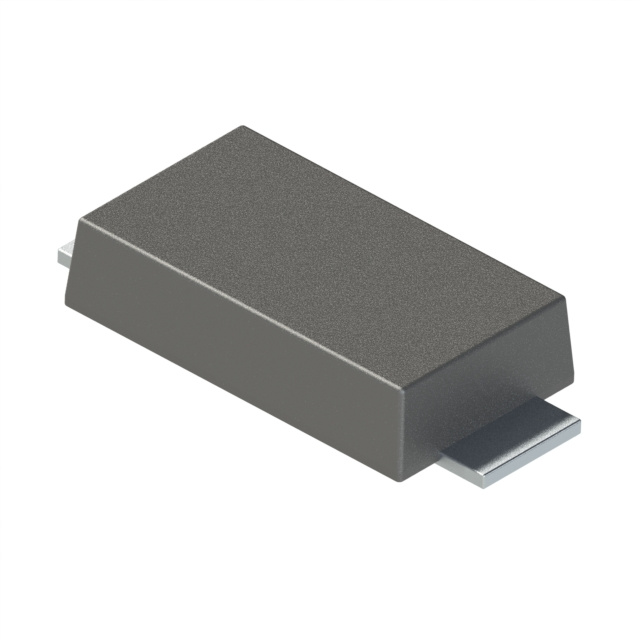

The S2KDF-13 is a 2.0A surface mount glass passivated rectifier from Diodes Incorporated, housed in the low-profile D-FLAT package. It features a peak repetitive reverse voltage of 800V and an average rectified output current of 2.0A at +25°C. The device supports a non-repetitive peak forward surge current of 55A and operates within a temperature range of -55°C to +150°C. Packaged in tape and reel format with 10,000 units per reel, it meets AEC-Q101 standards for high reliability.

Single Diodes Feature Summary

• Glass passivated die construction ensures stable performance and long-term reliability under various operating conditions.
• Low-profile design with a package height less than 1.1mm, suitable for space-constrained applications.
• Qualified to AEC-Q101 standards, providing high reliability suitable for demanding automotive environments.
• Lead-free finish that is RoHS compliant, halogen-free, and antimony-free.

Single Diodes Applications

• Switching Mode Power Supplies
• Chargers
• LED lightings
• Inverters
• AC-DC Adapters

Single Diodes Procurement Notes

Verify the specific ordering suffix '-13' corresponds to the 10,000-unit tape and reel packaging configuration as documented in the official datasheet. Confirm compliance requirements such as RoHS and AEC-Q101 qualification status directly against the manufacturer's specifications before procurement to ensure alignment with project needs.

Single Diodes Selection Notes

Select this component for general rectification applications requiring high current capability and robust surge overload ratings up to 55A. Consider the low thermal resistance junction-to-terminal value when designing heat dissipation strategies. Ensure the selected package fits the available board space due to its low-profile dimensions.

Single Diodes Part Context

This part belongs to the S2KDF series of advanced information rectifiers designed for surface mount technology. It serves as a standard rectification solution offering high current handling capabilities. The product line includes variants qualified for automotive use, indicating a focus on reliability and durability across diverse industrial and consumer electronics sectors.

Single Diodes Replacement Considerations

Check for the automotive-compliant variant S2KDFQ if specific automotive qualification is required. Verify pinout compatibility and electrical parameters against alternative rectifiers in the D-FLAT package before substitution.

Single Diodes FAQ

What is the maximum non-repetitive peak forward surge current?

The S2KDF-13 can withstand a non-repetitive peak forward surge current of 55A for an 8.3ms single half sine-wave superimposed on rated load.

Is the S2KDF-13 suitable for automotive applications?

Yes, the S2KDF-13 is qualified to AEC-Q101 standards for high reliability, making it suitable for automotive environments.
