S2M05T-24.000-R

Oscillators Overview

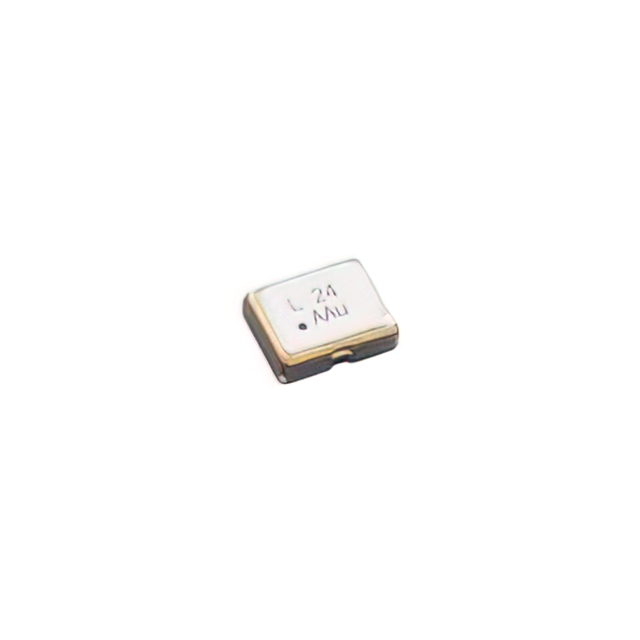

The S2M05T-24.000-R is a standard crystal oscillator (XO) from the Aker Technology Corp S2 series, operating at a nominal frequency of 24 MHz. It utilizes an HCMOS output interface and supports a supply voltage range of 1.62 V to 3.63 V. The device features a 4-pin surface-mount package with dimensions of 5 mm in length, 3.2 mm in width, and 0.95 mm in height. It offers a frequency stability of ±50 ppm and operates within a temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Provides stable 24 MHz clock signals via HCMOS output interface
• Operates on low-voltage power supplies ranging from 1.62V to 3.63V
• Designed for compact surface-mount applications with a 4-pin leadless package

Oscillators Applications

• General-purpose digital circuit timing references
• Microcontroller clock sources
• Embedded system synchronization

Oscillators Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm pinout configuration and electrical characteristics. Ensure that the selected variant matches the required supply voltage and output logic levels for the target application design.

Oscillators Selection Notes

Select this component when a 24 MHz reference signal is required for low-power embedded systems. Consider the 1.62V minimum operating voltage for compatibility with modern low-voltage logic families. Verify that the ±50 ppm stability meets the timing requirements of the connected digital peripherals.

Oscillators Part Context

This oscillator belongs to the S2 series of surface-mount crystal oscillators manufactured by Aker Technology Corp. The series is designed to provide reliable clock signals for consumer electronics and industrial control applications where space constraints and low power consumption are critical design factors.

Oscillators Replacement Considerations

Cross-reference with other 24 MHz HCMOS oscillators in the 5x3.2mm 4-pin package format. Ensure compatible supply voltage ranges and output drive capabilities before substitution.
